Schneider Electric XB4BL42 push button 600 VAC 1.2 Amp 1NC

Product Description

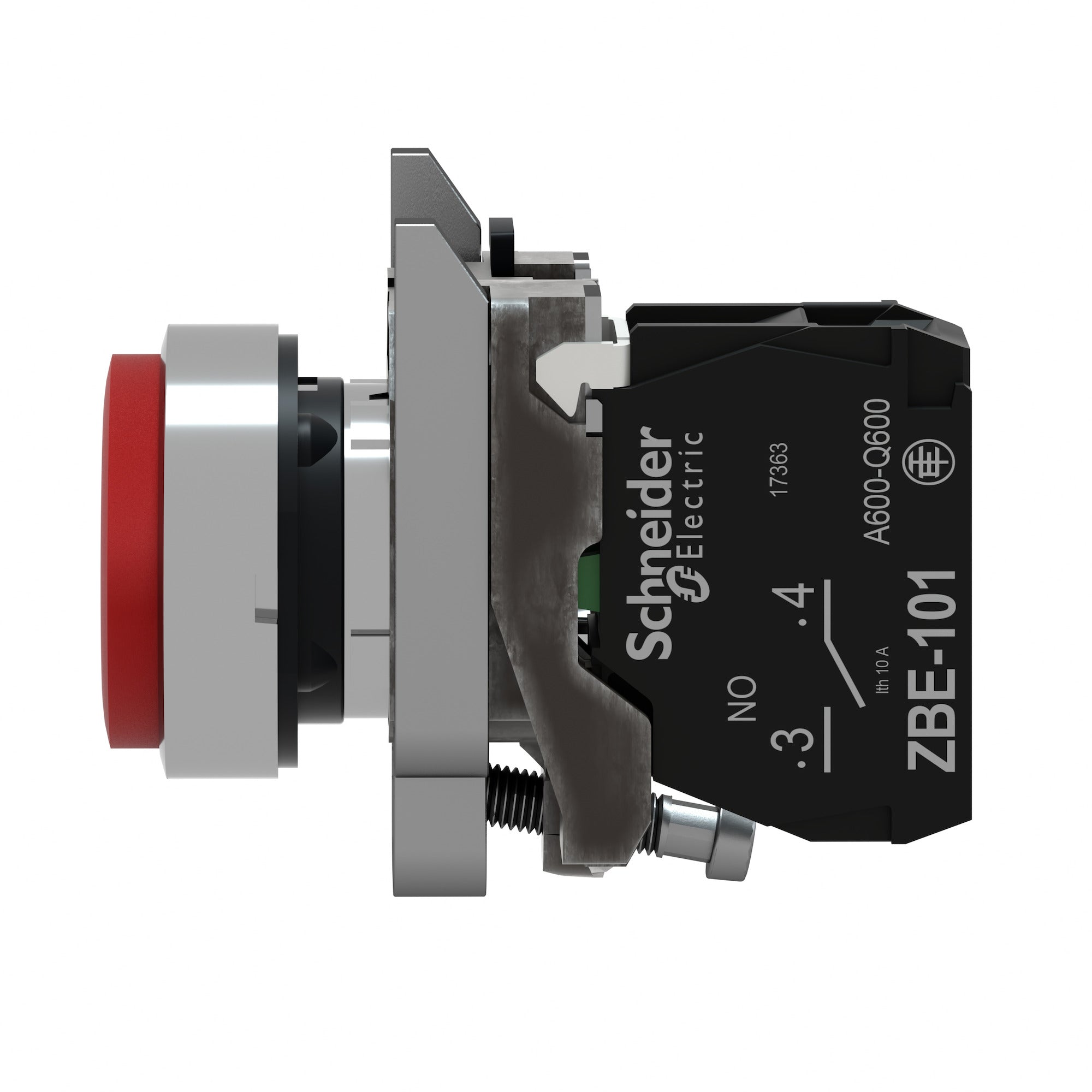

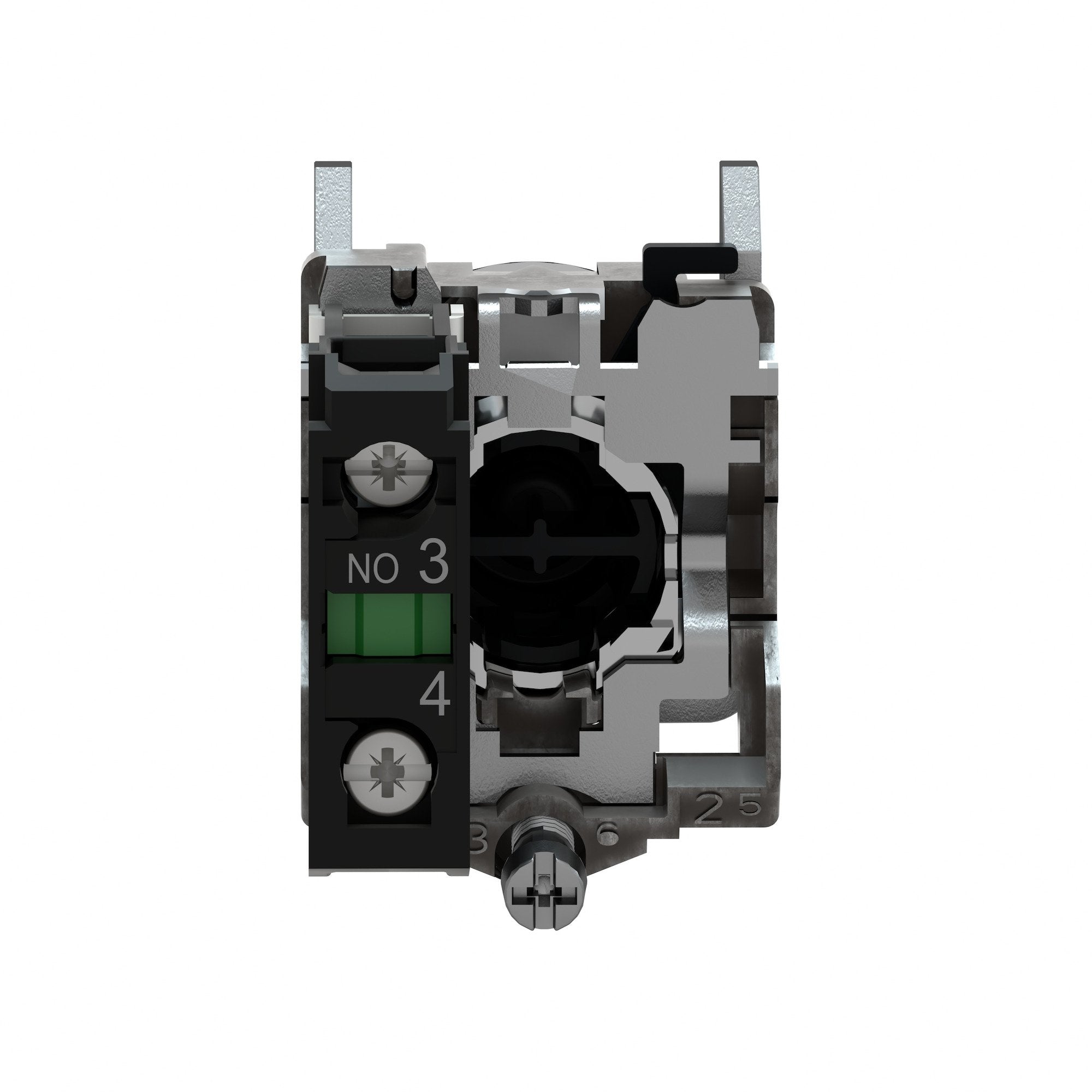

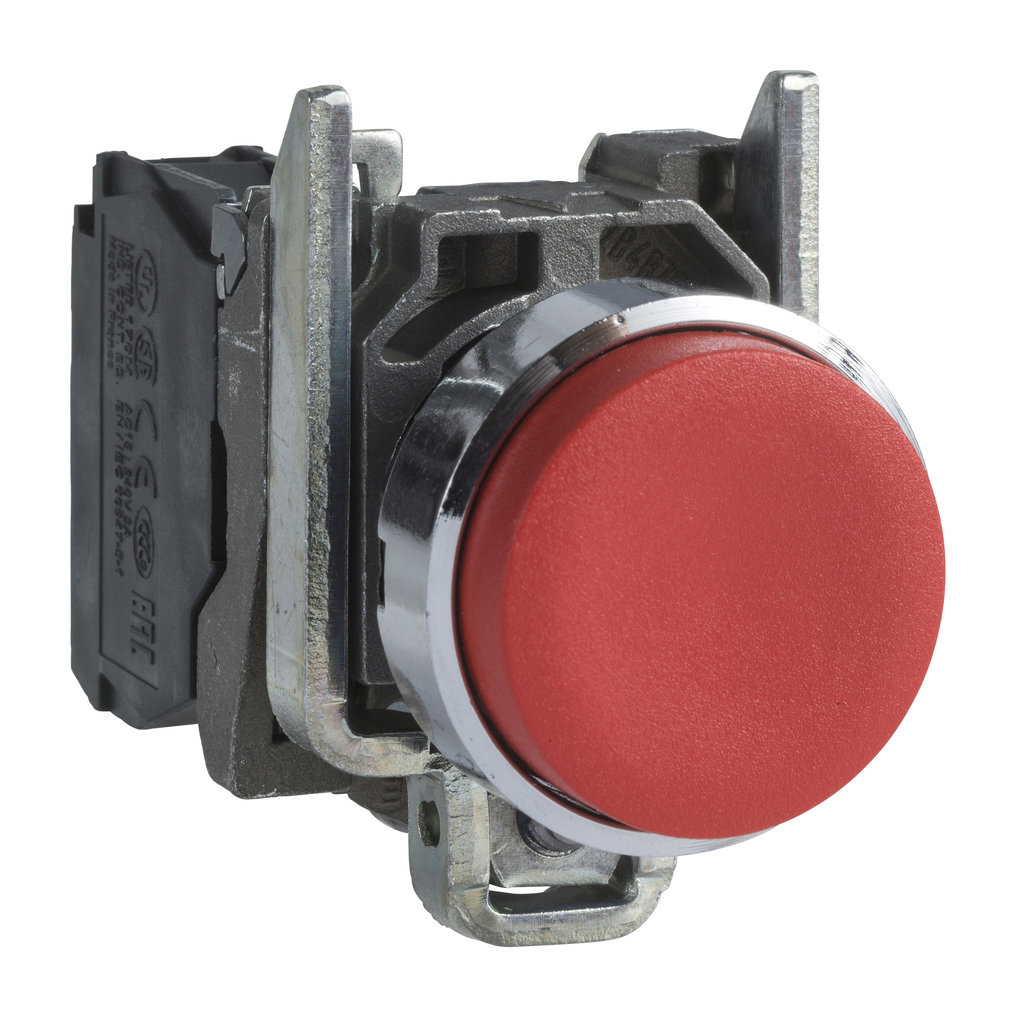

Schneider Electric XB4BL42 is a red push button designed for control and automation applications. This device operates on a spring return mechanism and features a metal bezel. It is simple to install into standard twenty-two millimeter panel cut-outs and easily connects to control circuits using screw-clamp connections. The button's design allows for an ergonomic interface for controlling machines and processes.

• Impact, dust, water, and vibration resistant (IP66)
• Compatible with standard twenty-two millimeter panel cut-outs
• Clear color coding aids in unit identification during installation

Product Highlights

This push button is well-suited for harsh environments, ensuring durability and longevity.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: XB4BL42

Technical Specifications

• Depth: 57 mm
• Width: 30 mm
• Height: 47 mm
• Weight: 0.18 lb
• Contact Rating: AC15 - DC13
• Amperage: 10 Amp
• Standard: CSA C22.2 No 14, IEC 60947-1, UL 508
• Country of Origin: France
