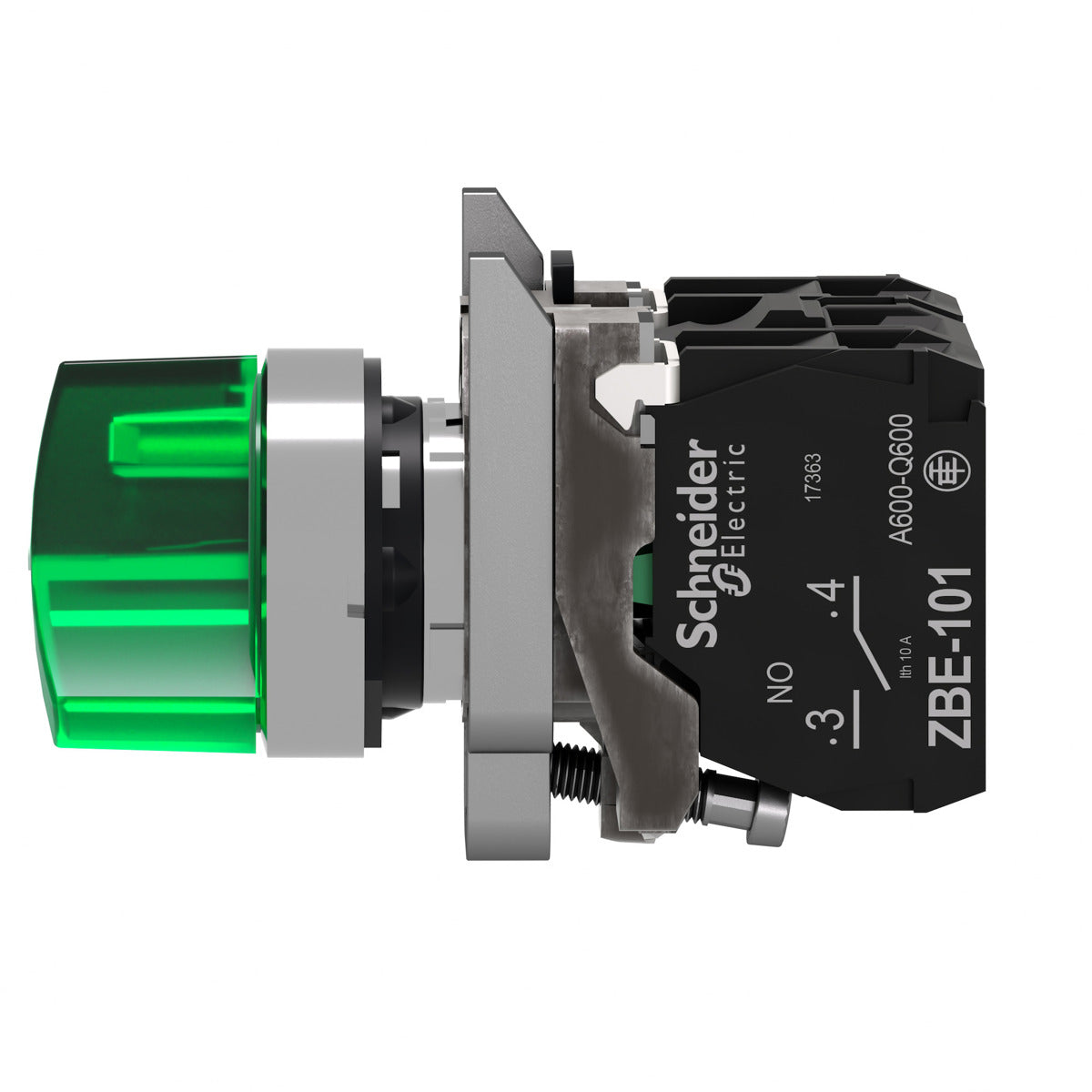

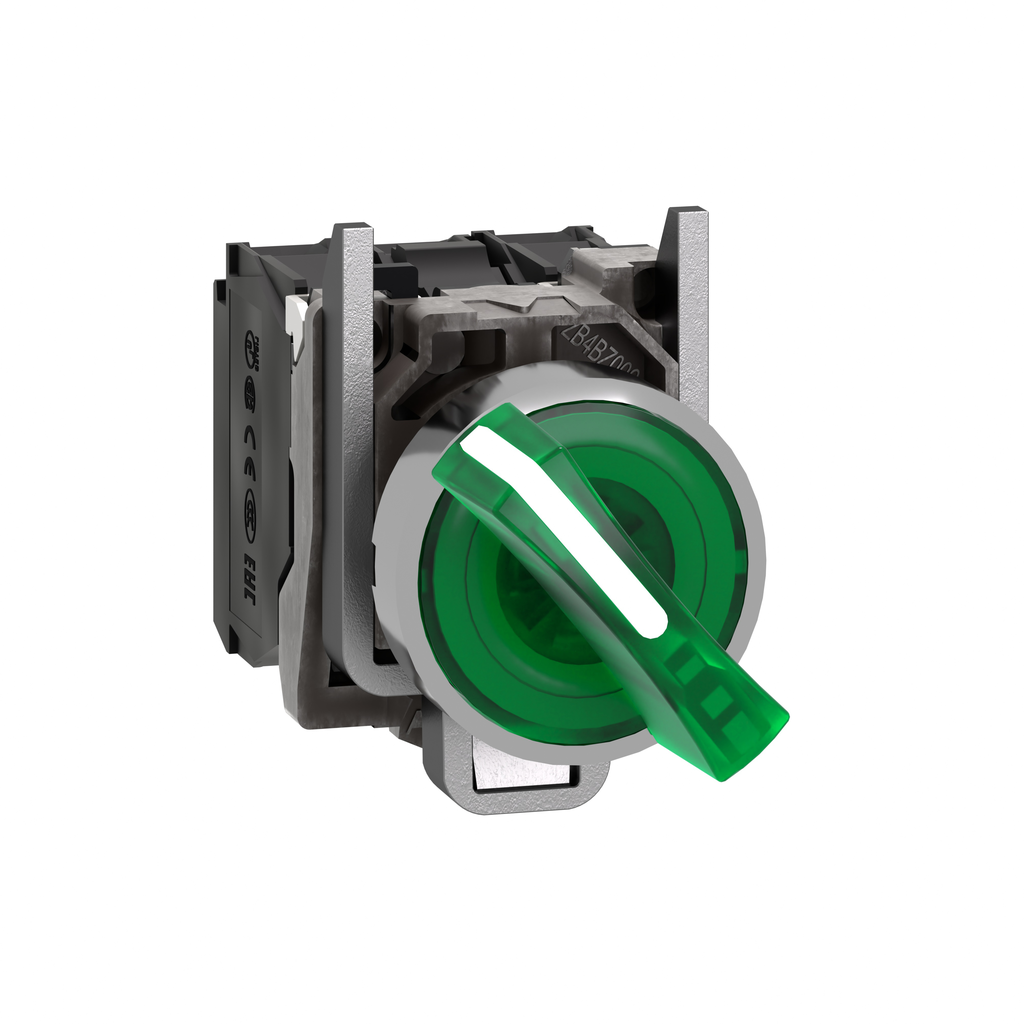

Schneider Electric XB4BK123B5 Illuminated Selector Switch 24V AC/DC 22mm

Product Description

The Schneider Electric XB4BK123B5 is an illuminated selector switch designed for control and automation. This switch operates at 24 volts AC, featuring a green LED for high visibility. It has a metal bezel and is built to withstand harsh conditions. It fits into standard twenty-two millimeter cut-outs and connects easily with screw-clamp terminals.

• Two-position selector switch
• IP66/IP67/IP69/IP69K rated for moisture and dust resistance
• Impact and vibration resistant

Product Highlights

This selector switch provides a reliable interface for machine control, ensuring visibility even in low-light environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: XB4BK123B5
• Type: Illuminated selector switch
• Dimensions: 30 mm width, 68 mm depth, 47 mm height
• Weight: 0.24 lb
• Current: 18 mA
• Voltage: 24 Volt AC/DC 50/60 Hz
• Action: Slow-break
• Contact Configuration: 1 NO + 1 NC
