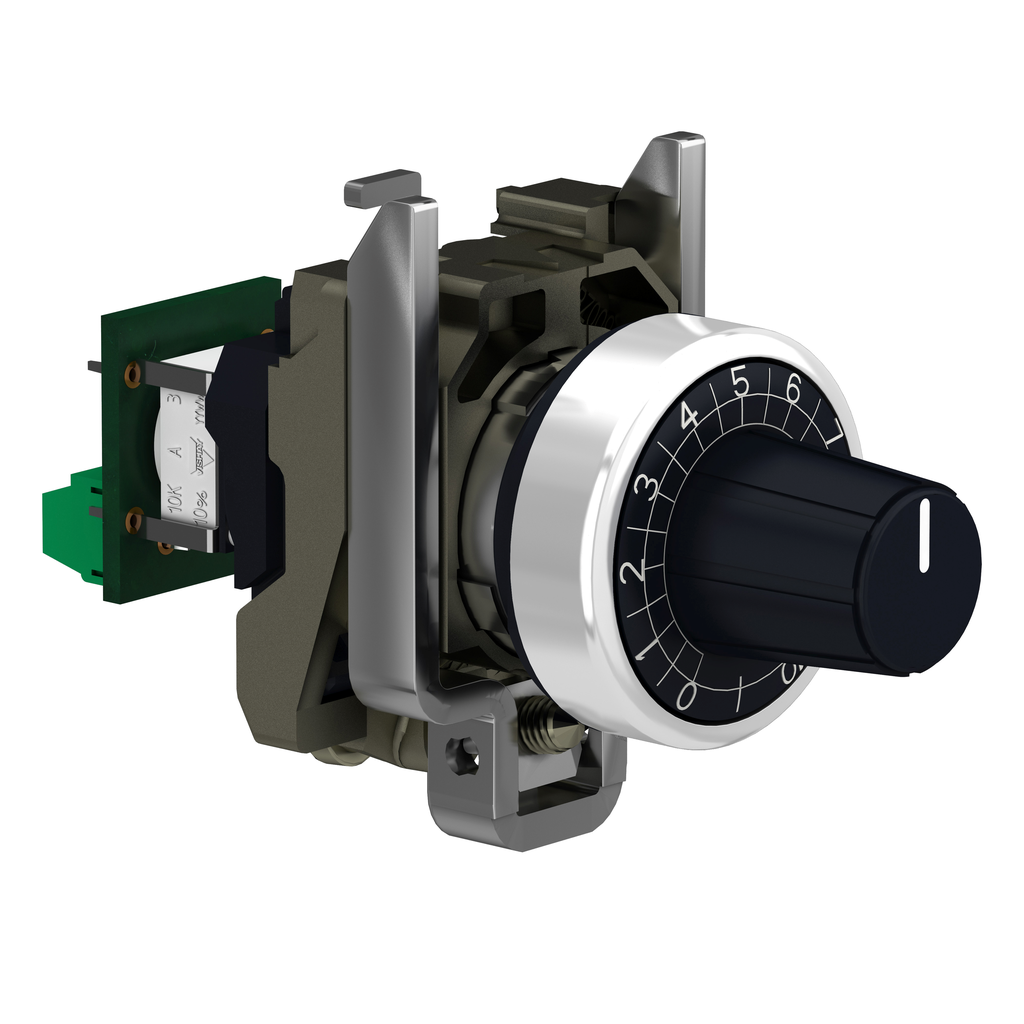

Schneider Electric XB4BD912R10K Complete Potentiometer 10K

Product Description

This Schneider Electric XB4BD912R10K potentiometer has a total resistance of 10k ohms. It is designed for controlling automation components such as drives and inverters. The device installs easily into standard cut-outs measuring twenty-two millimeters and features screw-clamp connections for straightforward setup. With protection ratings of IP66, IP69, and IP69K, this potentiometer is impact, dust, water, and vibration resistant, making it suitable for harsh environments. It is ideal for analog controls, including the speed control of motors via voltage or resistor inputs.

• Resistance: 10k ohms
• Rated Power: 1 watt
• IP66, IP69, IP69K rated for harsh environments

Product Highlights

This potentiometer is a reliable choice for industrial applications, allowing for precise control over machinery settings and processes.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: XB4BD912R10K
• Country of Origin: France
• Material: Cermet
• Width: 30 mm
• Height: 47 mm
• Weight: 0.21 lb
• Certifications: BV, CSA, UL Listed
