Schneider Electric XB4BA45 Push-button Switch 600V

Product Description

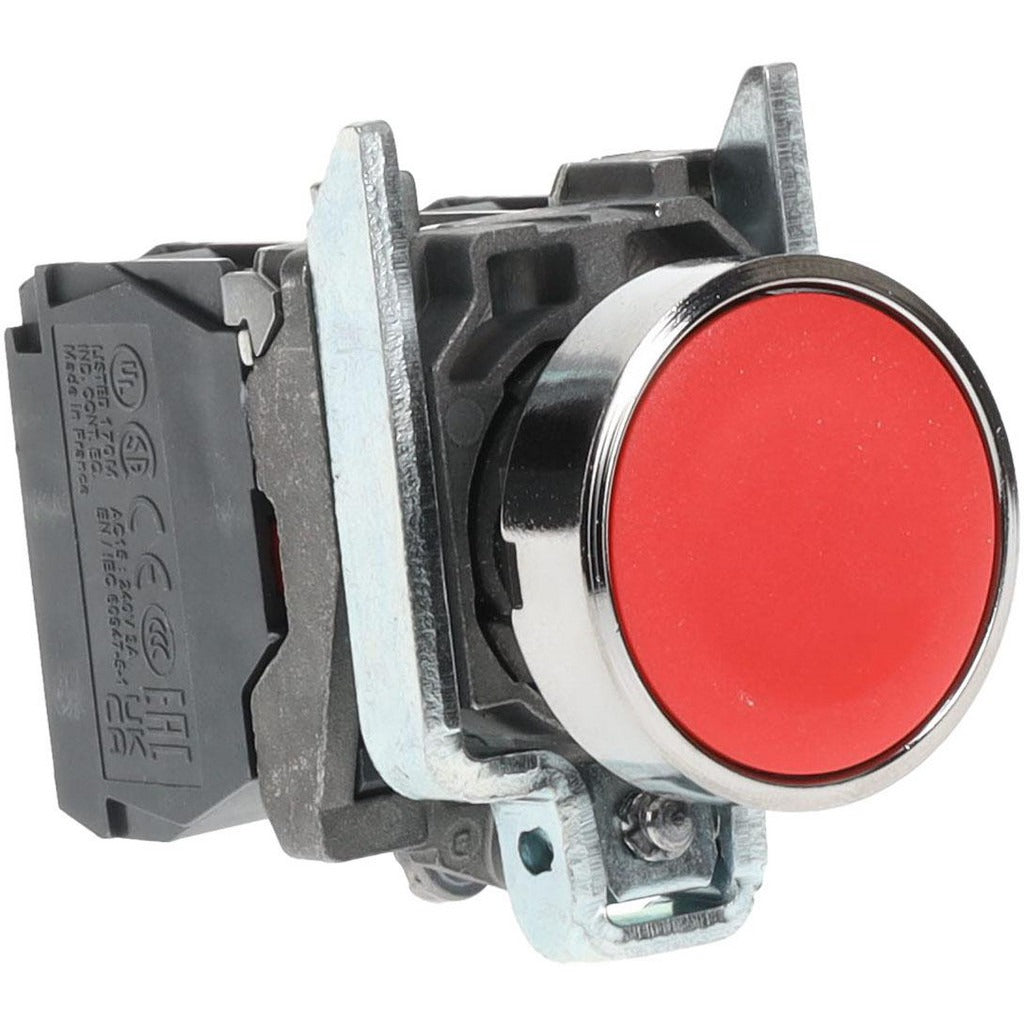

The SCHNEIDER ELECTRIC XB4BA45 is a momentary push-button switch designed for industrial control panel applications. It features a 22 mm mounting hole diameter, screw-terminal connections, and a red round operator head. Rated at 600 volts and 10 amps, this non-illuminated switch provides both normally closed (NC) and normally open (NO) contact configurations in a single unit. The XB4BA45 carries NEMA 4, 4X, and 13 ratings, making it suitable for environments requiring resistance to dust, water, and corrosion. It is compatible with Utilization Categories AC-15 and DC-13, covering typical industrial electromagnetic load switching.

This push-button switch is used in residential, commercial, and industrial control panels where a momentary operator is needed to control motors, contactors, relays, or other electromagnetic devices. Its NEMA 4X and anti-corrosive construction make it a practical choice for wash-down areas, outdoor enclosures, and harsh-environment control stations. Licensed electricians and industrial maintenance technicians are the primary installers of this device.

Key Features

• 22 mm mounting hole diameter fits standard 22 mm panel cutouts
• Momentary operation with NC/NO contact configuration
• Rated 600 volts and 10 amps for broad industrial applicability
• NEMA 4, 4X, and 13 rated — dust-tight, watertight, and anti-corrosive
• Non-illuminated red round operator head for clear visual identification
• Screw terminal connections for reliable field wiring
• CE, CSA, and UL Listed certifications (UL File E164353)

Compatibility

Designed as an OEM-style replacement or new-installation push-button switch for standard 22 mm industrial control panel cutouts meeting NEMA 4, 4X, or 13 enclosure requirements.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the control panel before mounting or wiring the switch. Use appropriately rated conductors and verify terminal torque requirements against the enclosure and panel documentation. Confirm the enclosure rating is maintained after installation to preserve the NEMA 4 or 4X listing.
