Schneider Electric XB4BA25 Push Button, Metal, 22mm, Replacement MPN

Product Description

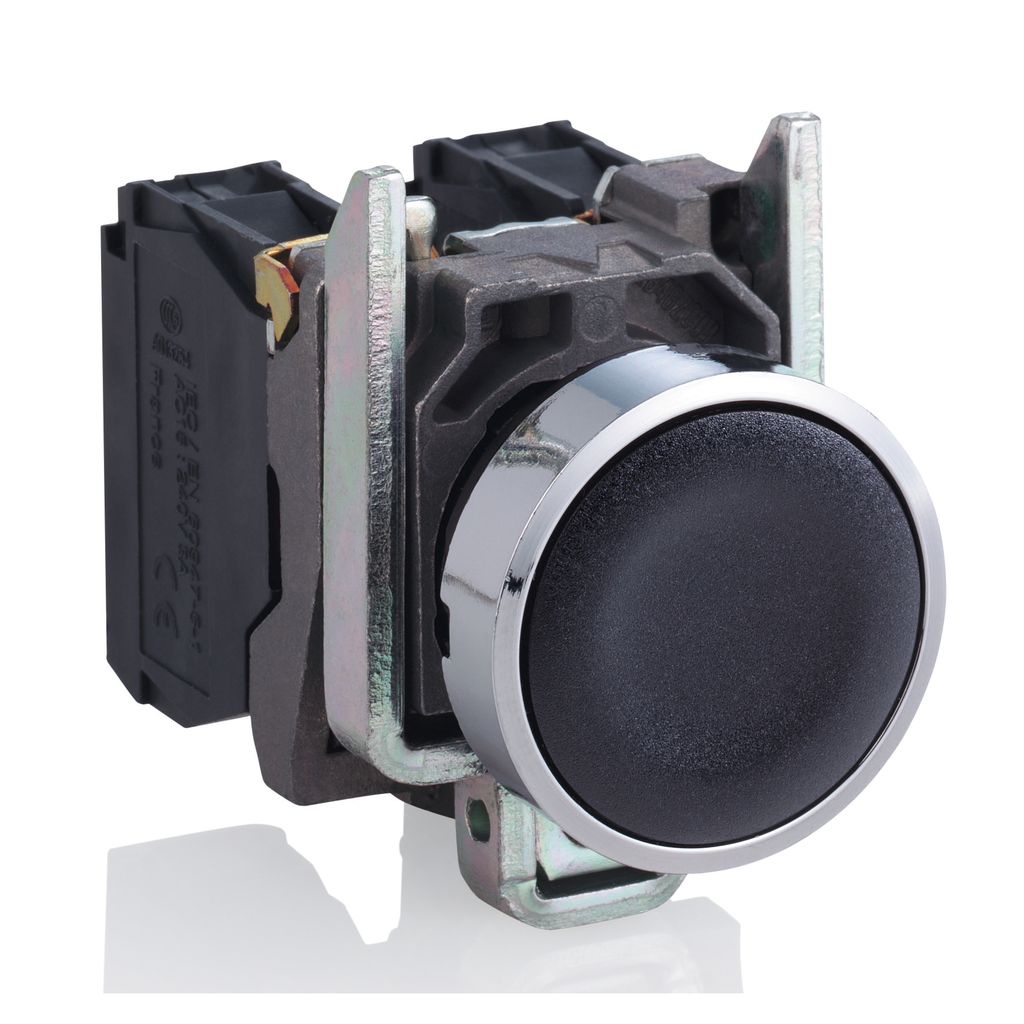

Schneider Electric XB4BA25 is a modular push button designed for various industrial applications. It operates with a spring return mechanism and features a chromium-plated metal bezel. The unit comes with a black flush cap that is unmarked. This push button includes one normally open (NO) and one normally closed (NC) slow break contact with screw-clamp terminal connections. It is designed to be installed into standard twenty-two millimeter diameter panel cut-outs. With its IP66, IP67, and IP69K ratings, this product is water, dust, and vibration resistant, making it suitable for harsh conditions.

• Modular push button with spring return design
• IP66/IP67/IP69K rated for harsh environments
• Compatible with standard 22mm panel cut-outs

Product Highlights

This push button provides an ergonomic interface for addressing machine controls and meets the demands of most industrial environments. Its robust design ensures reliability and ease of installation.

Product Information

Standard Information

• Catalog Number: XB4BA25
• Brand: Schneider Electric

Technical Specifications

• Type: Push-button
• Weight: 0.18 lb
• Depth: 52 mm
• Width: 30 mm
• Height: 47 mm
• Amperage Rating: 3 Amp 240 V AC-15
• Contact Configuration: 1 NO + 1 NC
• Operating Temperature: -40 to 70 degrees C
