Schneider Electric XAPG59505 Pushbutton Enclosure Nema 4 13

Product Description

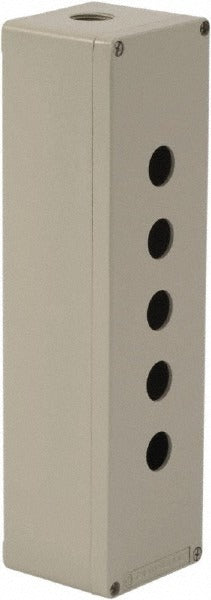

The SCHNEIDER ELECTRIC XAPG59505 is a five-hole aluminum pushbutton switch enclosure designed to house and protect pushbutton operator assemblies in industrial and commercial control applications. Constructed from aluminum, the enclosure measures 12.2 inches high by 3.35 inches wide by 3.03 inches deep, providing a compact pendant or panel-mount footprint for multi-station control layouts. Each of the five holes is sized at 1.58 inches in diameter, accommodating standard 40mm pushbutton operators. The unit carries NEMA 4 and NEMA 13 ratings, confirming protection against windblown dust, rain, splashing water, and oil or coolant seepage. Licensed electricians and industrial controls technicians are the primary installers of this enclosure.

This enclosure is suited for use in manufacturing, machine tool, material handling, and process control environments where multiple pushbutton operators must be grouped in a single housing. The five-hole configuration supports layouts that require start, stop, emergency stop, and auxiliary operator controls at a single control station. Its aluminum construction makes it appropriate for both indoor and outdoor installations where corrosion resistance and durability under wash-down or oily conditions are required. The NEMA 13 rating also makes it a practical choice for environments with exposure to non-corrosive coolants and cutting fluids.

Key Features

• Five 1.58-inch (40mm) operator holes for standard pushbutton or selector switch mountings
• Aluminum construction provides corrosion resistance and mechanical durability
• NEMA 4 rating offers protection against windblown dust and external water splashing
• NEMA 13 rating adds resistance to oil and non-corrosive coolant ingress
• Compact profile at 12.2 inches high by 3.35 inches wide by 3.03 inches deep suits pendant and panel installations
• Ships as a single-unit package with a minimum order quantity of one

Compatibility

Designed as an OEM-style enclosure compatible with standard 40mm pushbutton and selector switch operators. No specific model compatibility data was provided in the product input.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements and local codes. Disconnect and lock out all power to the control circuit before mounting operators or making any wiring connections inside the enclosure. Ensure all conduit entries and unused knockouts are properly sealed to maintain the NEMA 4 and NEMA 13 environmental ratings after installation. Do not over-tighten operator mounting hardware, as aluminum threads can be damaged by excessive torque.
