Schneider Electric XAPG49504 Pushbutton Enclosure Nema 4 13

Product Description

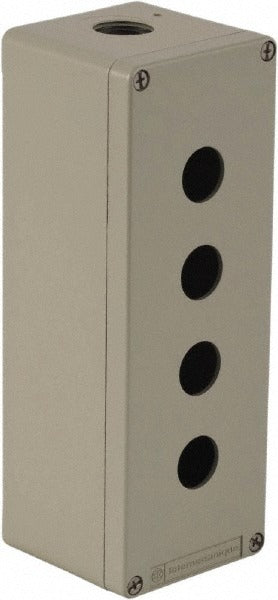

The SCHNEIDER ELECTRIC XAPG49504 is a zinc alloy pushbutton switch enclosure designed to house and protect pushbutton control stations in industrial and commercial electrical installations. The enclosure features four pre-drilled holes at 1.58 inches in diameter, accepting standard 40 mm pushbutton operators. Measuring 8.66 inches high by 3.15 inches wide by 3.03 inches deep, it carries a NEMA 4 and NEMA 13 rating, providing protection against windblown dust, rain, splashing water, and oil seepage. Licensed electricians and industrial controls technicians install this enclosure in panel assemblies where operator interface hardware must be protected from wet or contaminated environments.

This enclosure is suited for industrial control panels, machine operator stations, and process control applications in both commercial and light industrial facilities. The four-hole layout accommodates a variety of pushbutton, selector switch, or pilot light operators that use a standard 40 mm cutout. It is appropriate for indoor and outdoor installations where NEMA 4 or NEMA 13 environmental protection is required by design or code.

Key Features

• Four pre-drilled operator holes at 1.58 inches (40 mm) diameter for standard pushbutton operators
• Zinc alloy construction provides durability and resistance to impact in industrial environments
• NEMA 4 and NEMA 13 dual rating protects against water, dust, and oil contamination
• Compact form factor at 8.66 inches high by 3.15 inches wide by 3.03 inches deep
• Weighs 3.46 pounds, allowing secure surface or pendant mounting without excessive load

Compatibility

Designed as an OEM-style enclosure for use with standard 40 mm pushbutton operators in industrial control panel and operator station assemblies requiring NEMA 4 or NEMA 13 rated housings.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Disconnect and lock out all power to the control circuit before opening or mounting the enclosure. Verify that all operator hardware installed through the cutouts is rated for the same or greater NEMA protection level to maintain the enclosure integrity rating. Do not modify the enclosure body by drilling or cutting outside of the existing pre-drilled holes without confirming the impact on the NEMA rating.
