Schneider Electric XAPG39203 Pushbutton Switch Enclosure

Product Description

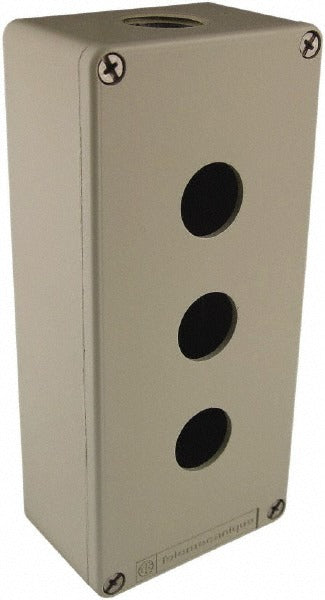

The SCHNEIDER ELECTRIC XAPG39203 is a 3-hole pushbutton switch enclosure designed to house and protect pushbutton operator assemblies in industrial and commercial control applications. Constructed from zinc alloy, it offers solid mechanical durability in environments where moisture, dust, and contaminants are a concern. The enclosure measures 6.9 inches high by 3.15 inches wide by 2.03 inches deep and carries NEMA 4 and NEMA 13 ratings, making it suitable for washdown and oil-tight installations. Each hole accepts a 1.58-inch diameter pushbutton operator. Licensed electricians and industrial control technicians are the primary installers of this enclosure.

This enclosure is applied in industrial control panels, machine operator stations, and process control environments where a compact, multi-operator housing is required. The 3-hole layout accommodates up to three pushbutton or selector switch operators, supporting start, stop, and auxiliary function groupings on a single surface-mount station. Its NEMA 4 and NEMA 13 ratings make it appropriate for indoor locations exposed to splashing water, seeping oils, and non-corrosive coolants. Typical settings include manufacturing floors, pump control stations, and HVAC mechanical rooms.

Key Features

• Zinc alloy construction provides rigid, impact-resistant housing for operator controls
• 3 pre-punched holes at 1.58 inches diameter accommodate standard pushbutton operators
• NEMA 4 rating protects against windblown dust and directed water spray
• NEMA 13 rating provides oil-tight and dust-tight performance for industrial environments
• Compact footprint at 6.9 inches high by 3.15 inches wide by 2.03 inches deep suits tight panel layouts

Compatibility

Designed as an OEM-style replacement enclosure compatible with standard 40 mm pushbutton operator assemblies used in industrial control station applications.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. Disconnect and lock out all control power before opening or wiring the enclosure. Ensure all conduit entries and unused openings are properly sealed to maintain the NEMA 4 and NEMA 13 ratings. Do not modify the pre-punched hole diameter, as doing so will void the enclosure rating.
