Schneider Electric XAPG29202 Pushbutton Switch Enclosure

Product Description

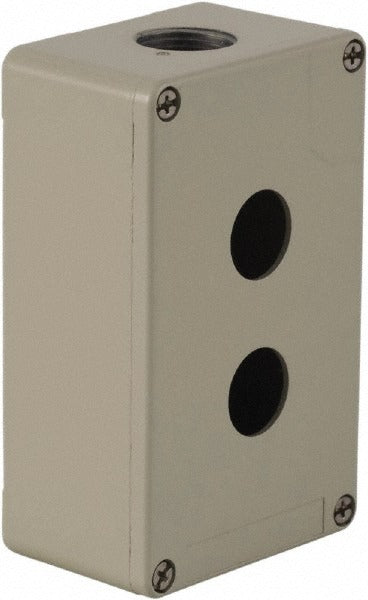

The SCHNEIDER ELECTRIC XAPG29202 is a two-hole zinc alloy pushbutton switch enclosure designed to house and protect pushbutton operator assemblies in industrial and commercial control applications. Rated NEMA 4 and NEMA 13, it provides a sealed enclosure suitable for environments where water ingress, dust, and oil splash are concerns. Each hole is 1.58 inches in diameter, sized to accept standard 40 mm pushbutton operators. The enclosure measures 5.12 inches high by 3.15 inches wide by 2.03 inches deep and weighs 1.57 pounds. Electricians and industrial control panel builders install this type of enclosure when mounting pushbuttons on machine faces, control stations, or panel subassemblies.

This enclosure is suited for light industrial, manufacturing, and process control environments where a compact, corrosion-resistant housing is needed for two pushbutton operators. Its zinc alloy construction offers durability in wash-down and oil-mist service conditions that meet NEMA 4 and NEMA 13 requirements. Typical applications include motor start-stop stations, conveyor control points, and machine tool operator interfaces. The two pre-cut holes accept standard 40 mm diameter pushbutton operators, making it a direct-fit solution for most panel-mount control stations.

Key Features

• NEMA 4 and NEMA 13 rated for protection against water and oil ingress
• Two pre-cut holes at 1.58 inches (40 mm) diameter for standard pushbutton operators
• Zinc alloy construction for corrosion resistance and mechanical durability
• Compact footprint: 5.12 inches high x 3.15 inches wide x 2.03 inches deep
• Lightweight at 1.57 pounds for easy panel or machine-face mounting

Compatibility

Designed as an OEM-style enclosure for use with standard 40 mm pushbutton operator assemblies in NEMA 4 and NEMA 13 rated control station applications.

Installation Notes

Installation is typically performed by a licensed electrician or qualified control panel assembler. Disconnect and lock out all power to the control circuit before mounting operators or making wiring connections inside the enclosure. Ensure all conduit entries and operator cutouts are properly sealed to maintain the NEMA 4 and NEMA 13 ingress protection ratings. Follow applicable NEC requirements for industrial control panel wiring and enclosure grounding.
