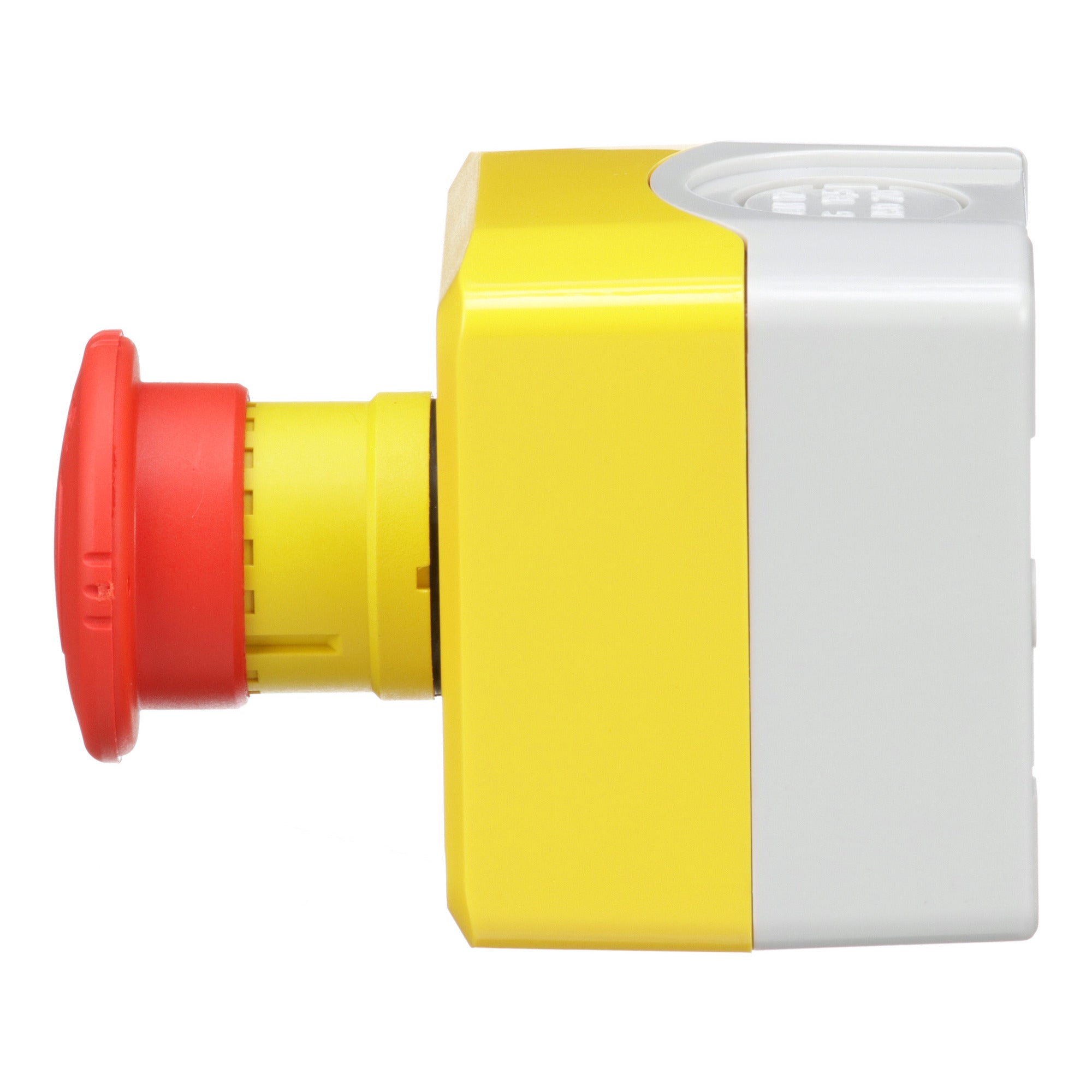

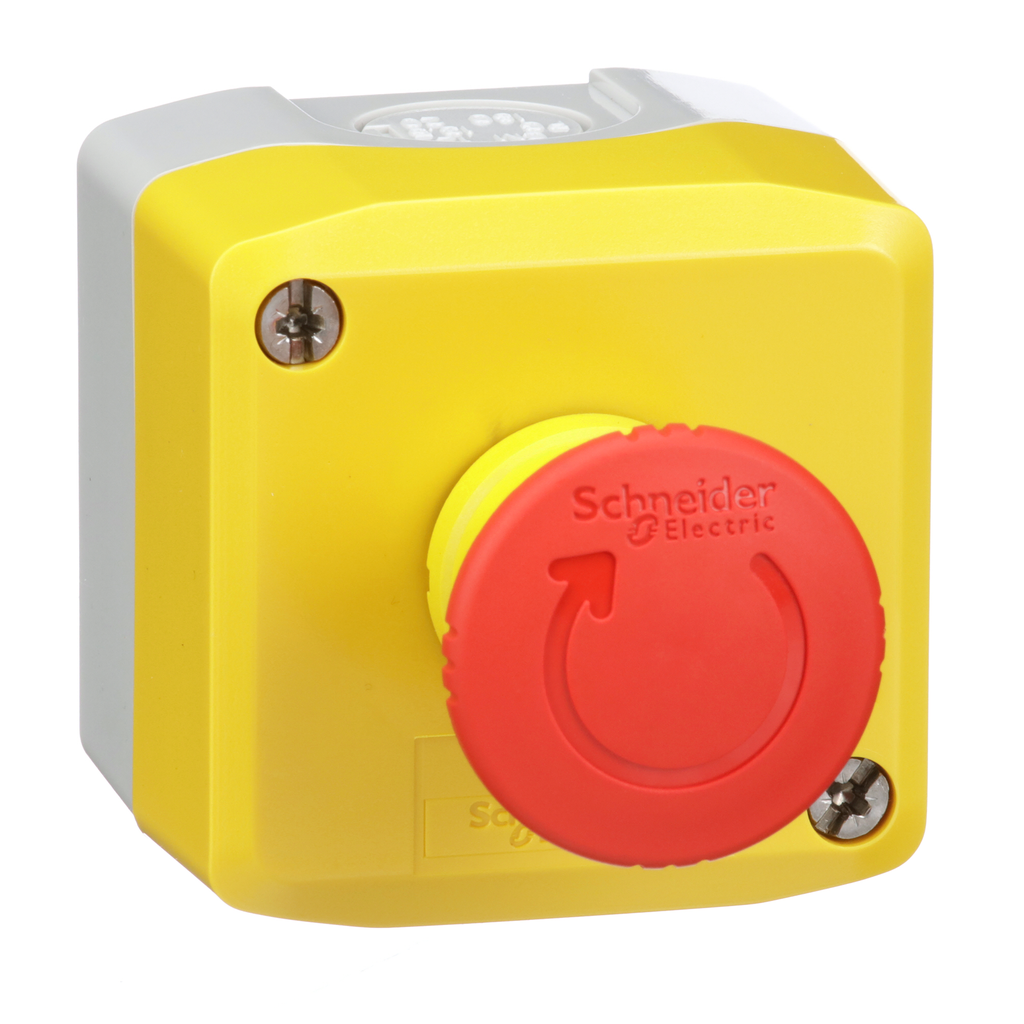

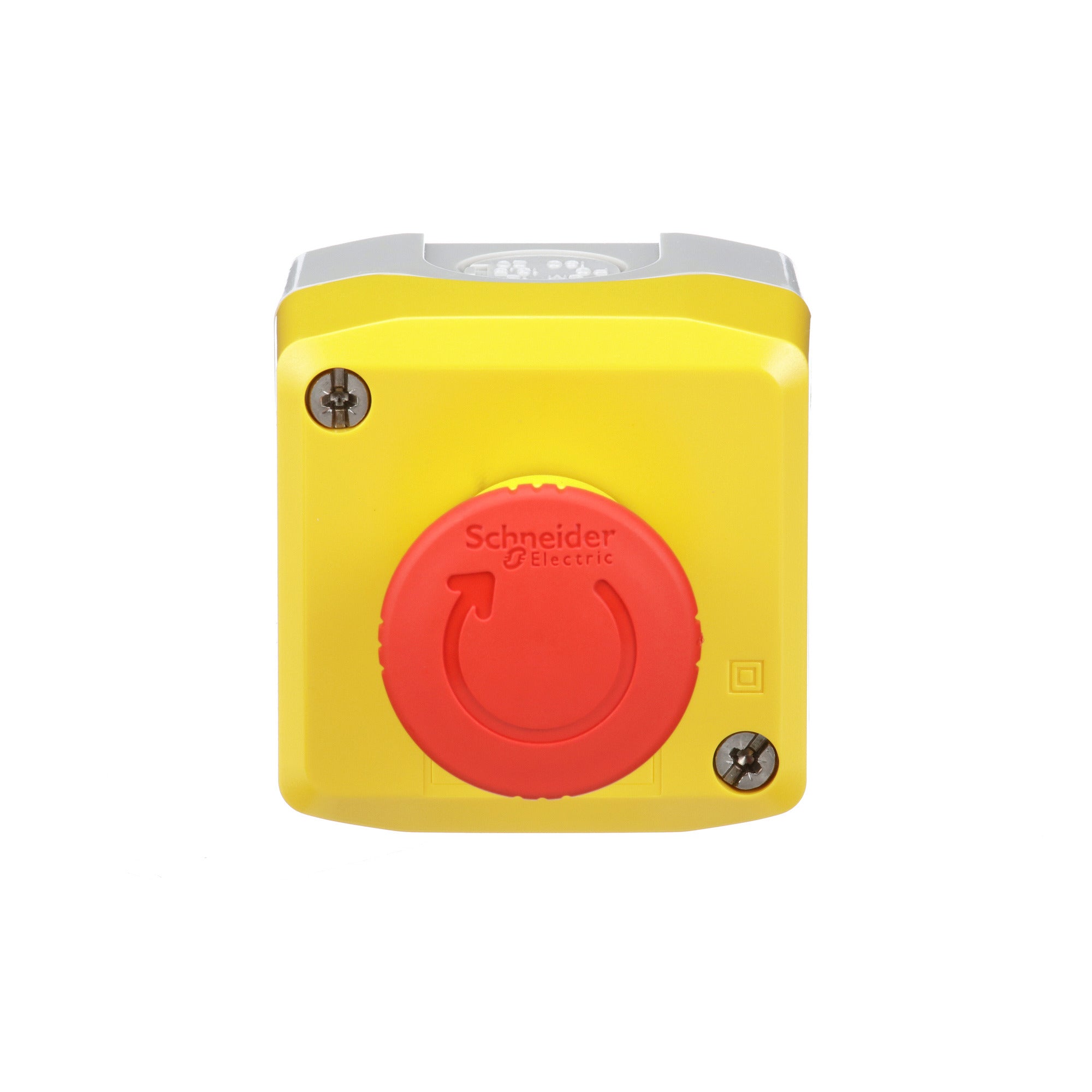

Schneider Electric XALK178H7 Square D 600 VAC 10 Amp 1NC Trigger Action Push Button Emergency Stop

Product Description

Schneider Electric XALK178H7 is a 600 VAC 10 Amp 1NC trigger action push button emergency stop device. It features modular design elements for simple setup and flexible usage. The locking mechanism provides secure mounting with ease of installation. The push button is part of the Harmony series which includes metal and plastic variants. It is suitable for various operational settings, including low load and high power applications. It has a temperature range of minus forty degrees Celsius to seventy degrees Celsius, making it versatile for different environments. This product is ideal for use in industrial applications including automotive, textiles, and control system panels.

• Rated for 600 VAC and 10 amps
• Robust metal and plastic construction
• Wide temperature range from -40C to 70C

Product Highlights

Designed for emergency stop applications and certified for use in various environments.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Schneider Electric

Technical Specifications

• Catalog Number: XALK178H7
• Action: Slow-break
• Amperage: 10 Amp
• Material: Polycarbonate
• Standard: CSA C22.2 No 14, IEC 60204-1, IEC 60364-5-53, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, ISO 13850, JIS C 4520, UL 508
• Enclosure: IP65
• Operating Force: 44 N
