Schneider Electric XALD321H29H7 Push-button Station

Product Description

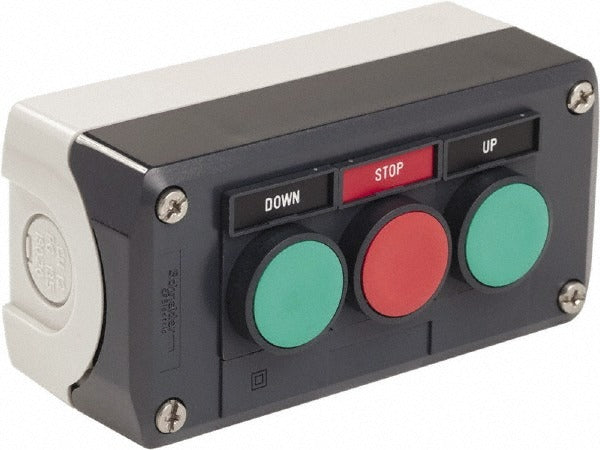

The SCHNEIDER ELECTRIC XALD321H29H7 is a momentary push-button control station designed for industrial and commercial motor control applications. It houses three flush push-button operators configured for Up, Down, and Stop functions, with a 2NO/NC contact configuration. The enclosure carries NEMA 13 and 4X ratings, making it suitable for environments exposed to dust, oil, and non-corrosive liquids. Licensed electricians and industrial maintenance technicians install this station as part of hoist, crane, conveyor, or similar directional motor control circuits.

This control station is applied in residential, commercial, and industrial settings wherever three-function momentary control is required at a local operator interface. Typical installations include overhead hoists, material handling equipment, and industrial machinery requiring Up, Down, and Stop control at the point of use. The black and red operator color coding supports standard convention for directional and stop functions.

Key Features

• Three flush push-button operators with Up, Down, and Stop legend markings
• Momentary switch action for safe, operator-controlled directional commands
• 2NO/NC contact configuration supports standard motor starter and contactor wiring schemes
• NEMA 13 and 4X enclosure ratings provide protection against dust, oil, and corrosion
• Black and red operator colors distinguish directional from stop functions at a glance

Compatibility

Designed as an OEM-style replacement or direct-install push-button control station for industrial motor control applications requiring three-operator momentary contact input with NEMA 13 and 4X environmental protection.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Disconnect and lock out all power to the associated motor control circuit before wiring or mounting the control station. Verify contact configuration matches the downstream contactor or motor starter requirements before energizing. Do not exceed the rated voltage and current specifications of the control station contacts.
