Schneider Electric XALD164H29H7 Push-button Control Station

Product Description

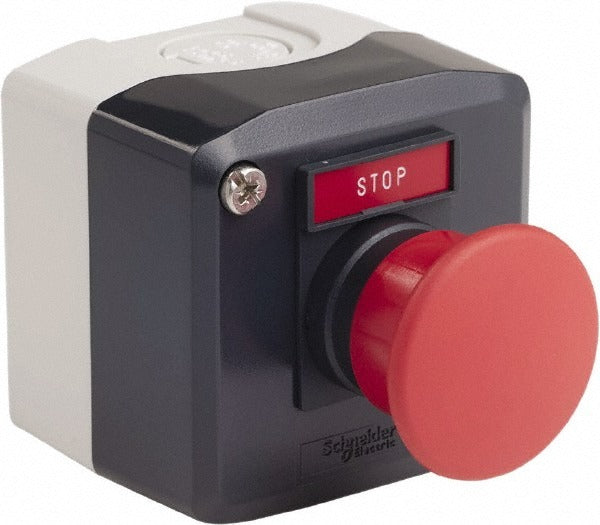

The SCHNEIDER ELECTRIC XALD164H29H7 is a momentary push-button control station designed for industrial control applications where a dedicated stop function is required. It features a red mushroom head operator with a normally closed (NC) contact configuration, providing a positive, fail-safe stop signal when actuated. Rated NEMA 13 and 4X, the enclosure resists dust, oil, and water ingress, making it suitable for demanding environments. A single operator is housed in the station, clearly marked with Stop legend for quick identification. Licensed electricians and industrial controls technicians are the typical installers.

This control station is suited for use in industrial and commercial settings where machine guarding, conveyor control, motor control circuits, or process equipment requires a dedicated stop point. The mushroom head design allows for fast palm actuation in urgent stop situations. The NEMA 4X rating makes it appropriate for wet or washdown areas, as well as locations subject to corrosion or airborne particulates. It is a single-gang station intended for surface or panel mounting in low-voltage control circuits.

Key Features

• Momentary NC contact configuration delivers a fail-safe stop signal in control circuits
• Red mushroom head operator provides fast, intuitive palm actuation for stop functions
• NEMA 13 and NEMA 4X dual ratings cover oil-tight, dust-tight, and corrosion-resistant applications
• Single operator with Stop legend marking for clear panel identification
• Compact enclosure suited for panel-mount or surface-mount installation

Compatibility

Designed as an OEM-style replacement or new-installation control station for industrial low-voltage machine control panels requiring a momentary NC stop function with NEMA 13 or 4X enclosure protection.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NFPA 70 (NEC) and applicable local electrical codes. De-energize and lock out the control circuit before wiring or mounting the station. Verify that the contact configuration and enclosure rating are appropriate for the application environment before installation. Do not exceed the rated electrical specifications of the device when integrating into a control circuit.
