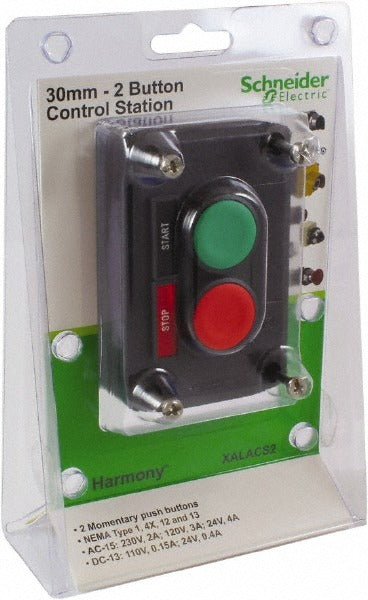

Schneider Electric XALACS2 Push-button Control Station

Product Description

The SCHNEIDER ELECTRIC XALACS2 is a two-operator momentary push-button control station designed for industrial and commercial electrical control applications. It features a green start button and a red stop button, both flush-mount operators, wired in a NO/NC contact configuration. The station carries UL Listed, CSA Approved, and CE Certified ratings, making it suitable for installations where code compliance is required. Licensed electricians and industrial maintenance technicians are the primary installers. At 0.59 pounds, the unit is compact and ready for panel or enclosure mounting in demanding environments.

The XALACS2 is suited for use in industrial facilities, commercial buildings, and process control environments where a dedicated start-stop station is needed. The Marche/Arret legend markings indicate bilingual French-English labeling, which is common in Canadian installations and facilities with bilingual compliance requirements. The NEMA 1, 3, 3R, 4, 12, and 13 ratings cover a broad range of indoor and outdoor environments, including locations exposed to dust, oil, and water ingress. This station is appropriate for controlling motors, conveyors, pumps, and similar equipment via low-voltage control circuits.

Key Features

• Two flush-mount push-button operators: green (Marche/Start) and red (Arret/Stop)
• Momentary switch action with NO/NC contact configuration
• NEMA 1, 3, 3R, 4, 12, and 13 rated enclosure for broad environmental coverage
• UL Listed, CSA Approved, and CE Certified per IEC standards
• Bilingual Marche/Arret legend markings for Canadian and bilingual-compliance applications
• Compact and lightweight at 0.59 pounds

Compatibility

Designed as an OEM-style replacement or direct-install two-operator push-button control station for industrial and commercial electrical control panels and enclosures meeting NEMA 1, 3, 3R, 4, 12, or 13 requirements.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the control circuit before wiring or mounting the station. Verify that the enclosure rating of the final installation matches or exceeds the environmental conditions at the mounting location. Do not exceed the contact ratings specified in the manufacturer documentation for the connected load.
