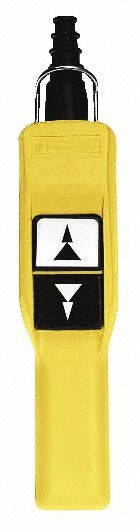

Schneider Electric XACA207 Pendant Control Station

Product Description

The SCHNEIDER ELECTRIC XACA207 is a 2-button pendant control station designed for momentary-action switching in industrial and commercial crane, hoist, and material-handling applications. It features a 2NO/2NC contact configuration with flush push button operators marked with Up Arrow and Down Arrow legends. The housing is yellow for high-visibility identification in demanding environments. Licensed electricians and industrial maintenance technicians install this unit as part of a machine control circuit, typically in facilities governed by UL 508 and EN/IEC 60947-5-1 standards. The compact enclosure accepts two flush-style operators and ships fully assembled.

The XACA207 is used in industrial settings where a portable, hand-held control station is required for directional operation of hoists, cranes, conveyors, or similar lifting and motion equipment. Its momentary contact action makes it well suited for up/down or raise/lower control functions. The yellow color aids in quick identification on the shop floor. This station is appropriate for both new installations and replacement of worn or damaged pendant stations in existing machine control systems.

Key Features

• Momentary-action contact switching for safe, operator-controlled motion
• 2NO/2NC contact configuration supports standard directional control wiring
• Two flush push button operators with Up Arrow and Down Arrow legend markings
• Yellow housing for high-visibility identification in industrial environments
• Meets UL 508, CSA C22.2 No. 14, EN/IEC 60947-5-1, and EN/IEC 60204-32 standards
• Compact form factor suitable for hand-held pendant use

Compatibility

Designed as an OEM-style replacement or new-install pendant control station for industrial crane, hoist, and machine control systems requiring a 2-operator momentary pushbutton pendant.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and applicable local codes. De-energize and lock out the machine control circuit before connecting or replacing any pendant control station. Verify that the contact configuration and operator legend markings match the existing control circuit requirements before wiring. Do not expose the pendant to loads or environments beyond the ratings listed on the nameplate.
