Schneider Electric XACA205 Square D 600 VAC 10 Amp 1NO 1NC NEMA 4/4X/5 Yellow Polypropylene Pendant Station

Product Description

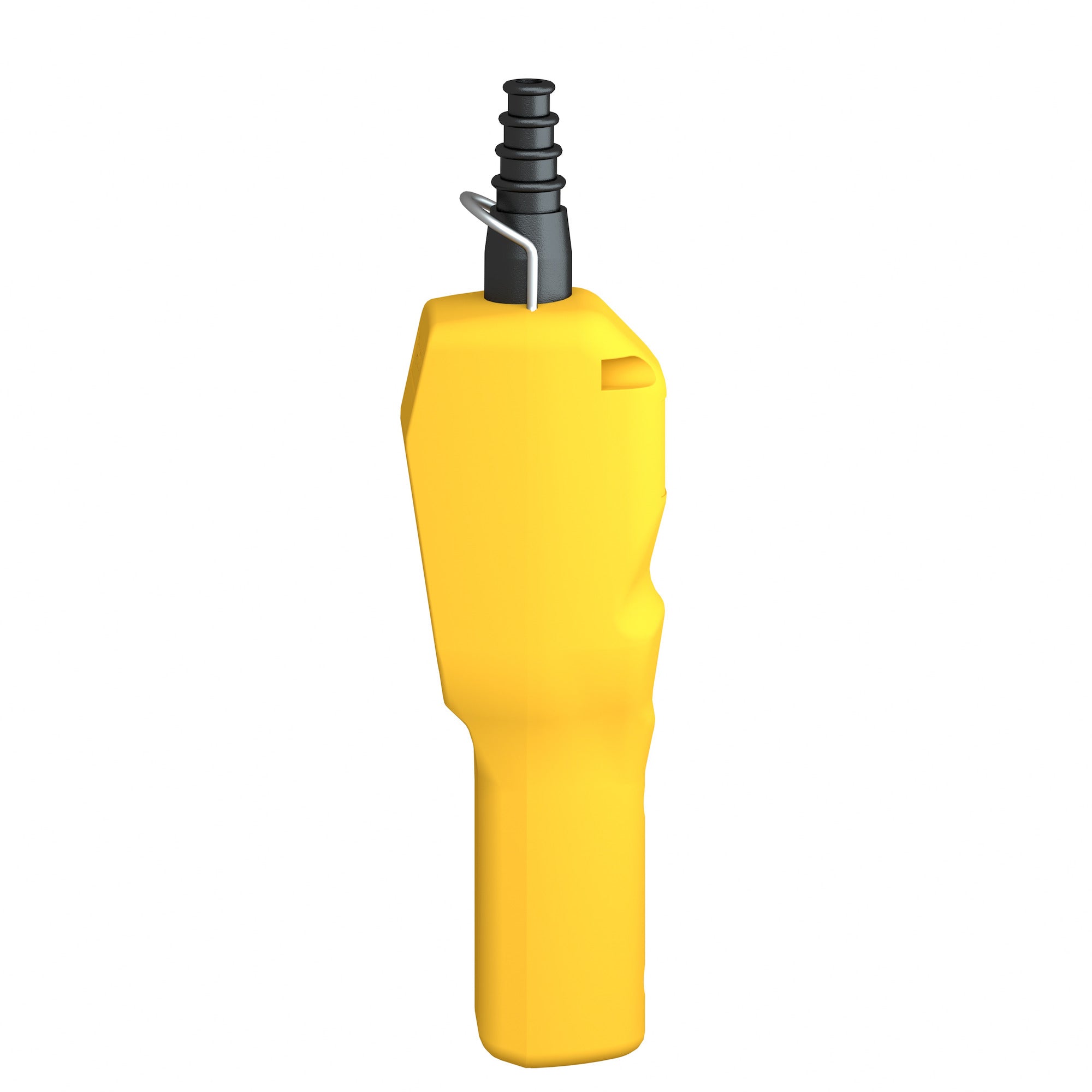

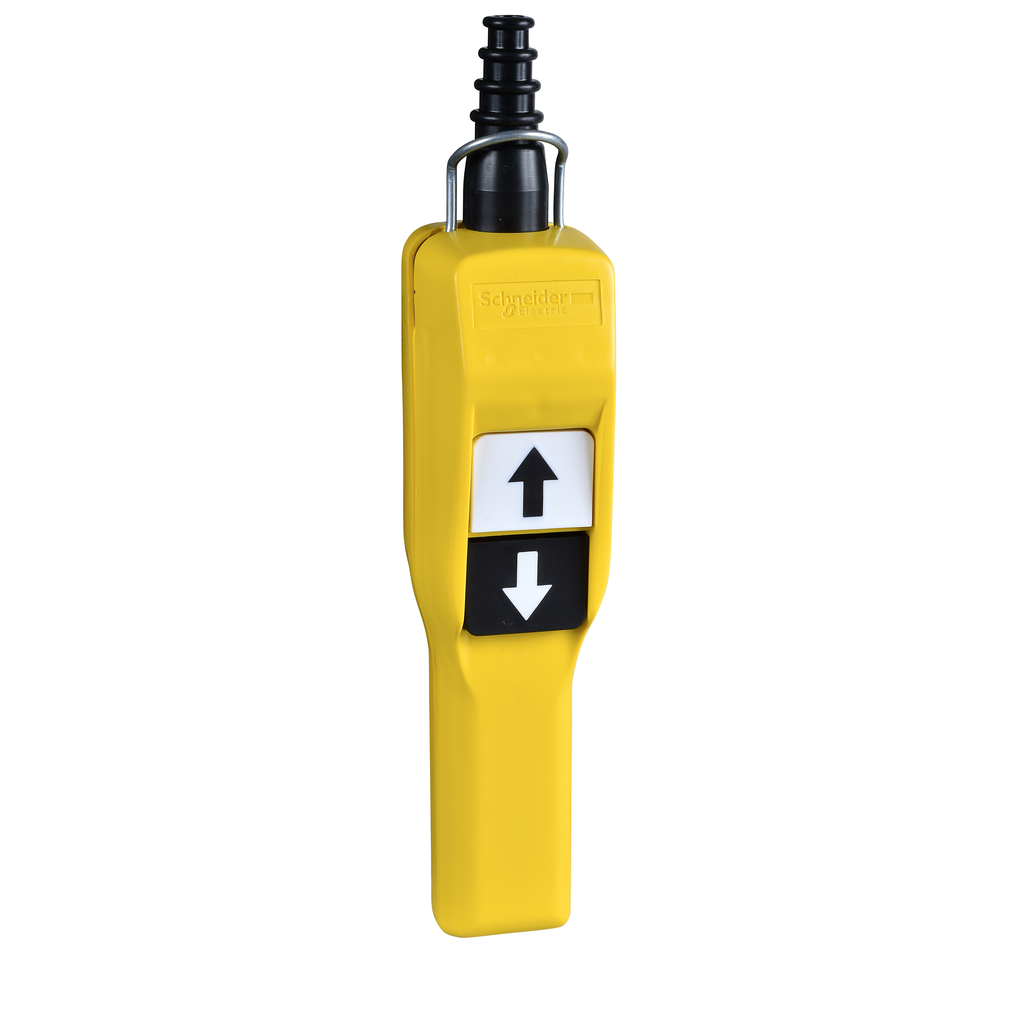

The Schneider Electric XACA205 is a pendant station designed for control circuits, ideal for managing single-speed hoist motors. This model features a yellow polypropylene enclosure with two interlocked push buttons, ensuring a safe operation. The structure is designed to withstand impacts, dust, water, and vibrations, achieving an IP65 rating. This robust design complies with various IEC standards, making it suitable for various industrial environments.

• Impact, dust, water, and vibration resistant.
• Includes two push buttons (one normally open, one normally closed).
• Rated for a maximum of ten amps at six hundred volts.

Product Highlights

Reliable control solution for industrial applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: XACA205

Technical Specifications

• Voltage: 600 Volt
• Wattage: 40 Watt DC-13
• Amperage: 10 Amp
• Dimensions: Enclosure material is polypropylene
• Operating Temperature: -13 to 158 degrees F (-25 to 70 degrees C)
• Contact Configuration: 1 N.O./1 N.C. (per operator)
• Environmental Conditions: Water tight, dust tight, and corrosion resistant
