Schneider Electric VW3A95814 kit for UL type 1 con

Product Description

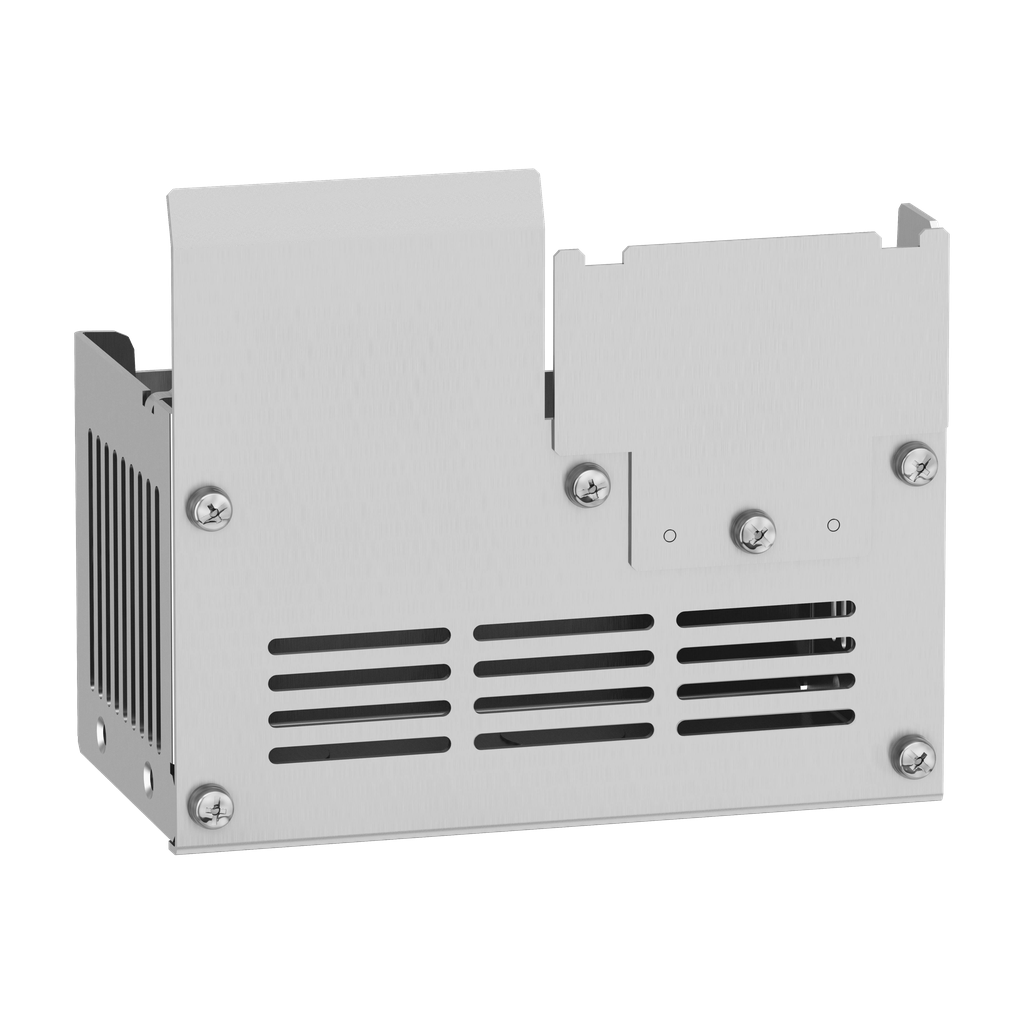

This UL conformity kit from Schneider Electric with MPN VW3A95814 is designed for the Altivar Machine ATV320 range. It allows your Altivar variable speed drive to meet UL type 1 conformity requirements. The frame size of the kit is three C, measuring one hundred forty millimeters wide by one hundred eighteen millimeters high, and seventy-four millimeters deep. The kit provides the ability to connect cables to the drive using tubes or cable glands. It connects shielding inside the kit and has a weight of zero point five five kilograms. This kit supports UL Type 1 compliance even when the drive is mounted directly onto a wall outside an enclosure. It integrates with ATV320-C drives rated at two point two kilowatts, three kilowatts, or four kilowatts, feeding three-phase motors operating at three hundred eighty volts to five hundred volts or five hundred twenty-five volts to six hundred volts. The kit includes necessary fixing accessories and is mounted to the lower section of the drive. The Altivar Machine ATV320 series is geared towards easy integration for various machine requirements, focusing on effective motor control and connectivity. These drives are optimized for applications such as material handling, packaging, textiles, hoisting, and mechanical actuators.

• UL Type 1 compliance for variable speed drives
• Compatible with ATV320-C models, supporting various power ratings
• Easy installation with included mounting accessories

Product Highlights

This kit supports direct cable connections and ensures UL compliance.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: Indonesia

Technical Specifications

• Catalog Number: VW3A95814
• Product Type: Kit for UL type 1 conformity
• GTIN: 03606480967184
• Applications: Variable speed drive; Altivar Machine ATV320
• Weight: 0.550 kg
