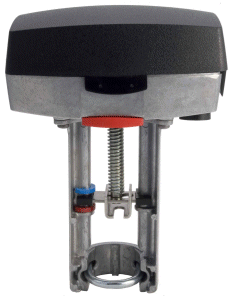

Schneider Electric VU-9313-686-5-15 globe valve assembly 24 VAC/VDC

Product Description

The Schneider Electric VU-9313-686-5-15 is a valve actuator assembly designed for various applications. This globe valve features a five-inch body size and operates with three-way mixing. It is suitable for a range of control signals including floating and proportional.

• Body Size: 5 inches
• Flow Coefficient: 290 cv
• Power Input Voltage: 24 VAC/VDC and 20-29 VDC

Product Highlights

This valve is constructed with a brass trim and requires a close-off pressure of 14 PSI. The electric actuator provides reliable operation with a force of 337 lbf.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Product Type: Valve-Actuator Assembly

Technical Specifications

• Configuration: 3-Way Mixing
• Connection Type: Flanged
• Stem Flow Action: Stem up, mixing closed A to AB
• Actuator Type: Electric
• Control Signal Range: 0 to 10 VDC or 4 to 20 mA
• Loss of Power Type: Non-Spring Return
• Mechanical Movement: Linear
• Protection Rating: NEMA 1
• Operating Fluid Temperature: 4 to 149 °C
• Relative Humidity: 15-95% non-condensing
• Electrical Insulation Class: Not specified
