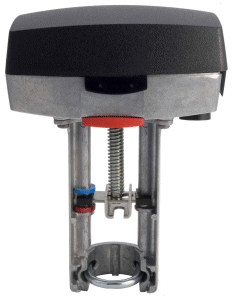

Schneider Electric VU-9313-686-5-14 Globe Valve Assembly 3W Mix 4 in

Product Description

The Schneider Electric VU-9313-686-5-14 is a globe valve assembly designed for effective mixing applications. This valve assembly features a four-inch body size and a three-way mixing configuration suitable for various fluid systems.

• Electric actuator type
• Flanged connection
• Close-off pressure rated at twenty-two PSI

Product Highlights

This product is suitable for applications requiring precision control of flow and pressure. The electric actuator ensures reliable performance with a force capability of three hundred thirty-seven pounds-force.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Type: Valve-actuator assembly

Technical Specifications

• Body Size: Four inches
• Flow Coefficient: One hundred seventy cv
• Power Input Voltage: Twenty-four VAC/VDC, twenty to twenty-nine VDC
• Operating Fluid Temperature: Four to one hundred forty-nine degrees Celsius
• Control Signal: Floating, proportional
• Protection Rating: NEMA 1
• Ambient Air Temperature for Operation: Negative ten to fifty degrees Celsius
• Relative Humidity: Fifteen to ninety-five percent non-condensing
