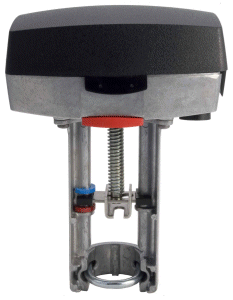

Schneider Electric VU-9313-686-5-13 Valve Actuator Assembly 3 in 3-Way Mixing

SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: VU-9313-686-5-13
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
LTL Delivery

This product weighs 70 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Schneider Electric VU-9313-686-5-13 is a valve actuator assembly designed for precise control in flow applications. This unit features a three-inch body size and operates as a three-way mixing globe valve. The actuator is electric with a floating and proportional control signal.

  • Body Material: Cast Iron
  • Flow Coefficient: 101 cv
  • Power Input Voltage: 24 VAC/VDC, 20 to 29 VDC

Product Highlights

This valve actuator assembly is suitable for a range of applications in HVAC systems and industrial processes.

Product Information

Standard Information

  • Brand: Schneider Electric
  • Country of Origin: US
Technical Specifications
Body Size
3 in
Configuration
3-Way Mixing
Close-Off Pressure
42 PSI
Power Input Voltage
24 VAC/VDC, 20 to 29 VDC
Control Signal Range
0 to 10 VDC, 4 to 20 mA
Force
337 lbf
Protection Rating
NEMA 1
Rated Operating Temperature
4-149 °C
Ambient Air Temperature for Operation
-10 to 50 °C
Relative Humidity
15-95% non-condensing
