SCHNEIDER ELECTRIC VU-8303-661-5-13 GLOBE VALVES
SCHNEIDER ELECTRIC VU-8303-661-5-13 GLOBE VALVES

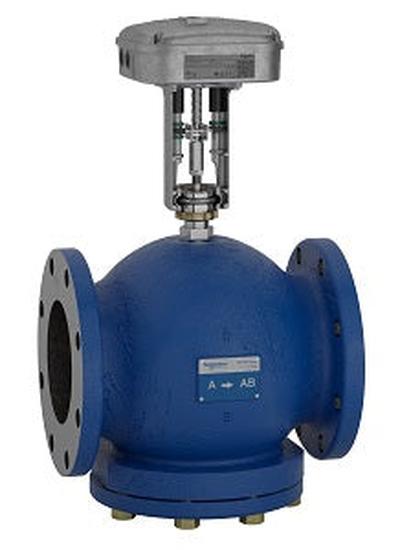

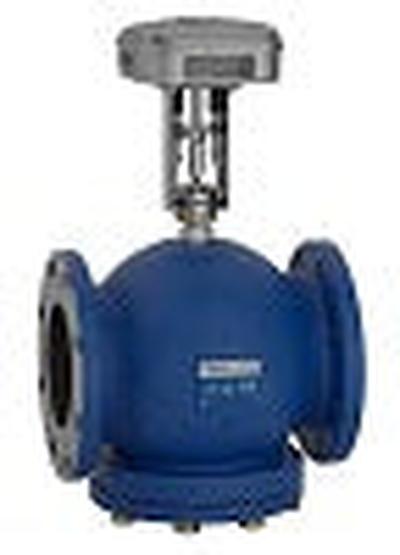

Schneider Electric VU-8303-661-5-13 Globe Valve Assembly 3-Way Mixing/Diverting

Brand: SCHNEIDER ELECTRIC
SKU: VU-8303-661-5-13
Availability: Out Of Stock
$8,856.55
$8,856.55
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Schneider Electric VU-8303-661-5-13 is a globe valve assembly designed for three-way mixing and diverting applications. This valve has a body size of three inches and features a brass trim for durability.

  • Body Size: 3 inches
  • Configuration: 3-Way Mixing/Diverting
  • Flow Coefficient: 110 Cv

Product Highlights

This valve assembly is suitable for various automated systems. It uses an electric actuator that can handle control signals ranging from 0 to 10 VDC.

Product Information

Standard Information

  • Brand: Schneider Electric
  • Product Type: Valve-Actuator Assembly

Technical Specifications

  • Close-Off Pressure: 35 PSI
  • Power Input Voltage: 24 VAC/VDC
  • Material Trim: Brass
  • Protection Rating: NEMA 4
  • Operating Fluid Temperature: -7 to 138 °C
  • Force: 202 lbf (900 N)
  • Ambient Air Temperature for Operation: -10 to 50 °C
  • Relative Humidity: 15-95% non-condensing
