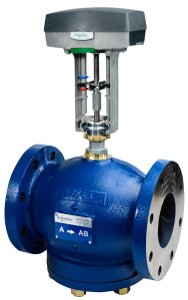

Schneider Electric VU-8213-686-5-13 Globe Valve Assembly 3 in 2-Way Replacement MPN

Product Description

The Schneider Electric VU-8213-686-5-13 is a three-inch globe valve assembly that facilitates fluid flow control in various HVAC applications. This valve features a two-way configuration for straightforward operation and is made with durable brass trim to ensure longevity. The valve operates at a close-off pressure of one hundred twenty-five PSI and can accept a power input voltage of twenty-four VAC or twenty to twenty-nine VDC.

• Body Size: three inches
• Flow Coefficient: eighty-five cv
• Actuator Type: Electric

Product Highlights

This valve assembly is ideal for industrial and commercial applications where reliable performance is required. With its electric actuator and fail-in-place mechanism, it guarantees consistent flow regulation even during power loss.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VU-8213-686-5-13

Technical Specifications

• Configuration: Two-Way
• Material Trim: Brass
• Control Signal: Floating, Proportional
• Control Signal Range: 0-10 VDC, 2-10 VDC, 4-20mA
• Force: 337 lbf
• Mechanical Movement: Linear
• Protection Rating: NEMA 1
• Operating Fluid Temperature: -7-138 °C
• Ambient Air Temperature for Operation: -10-50 °C
• Purchasing Weight: 28.576 kg
