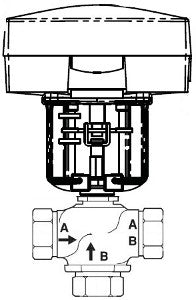

Schneider Electric VU-7323-674-4-10 Valve Actuator Assembly 1-1/2 in 3-Way Diverting

Product Description

Schneider Electric VU-7323-674-4-10 is a valve actuator assembly designed for efficient operation in various systems. This product features a one and one-half inch body size and a three-way diverting configuration, ideal for control applications. It operates on an electric actuator with a power input voltage range of twenty-four VAC/VDC or twenty to twenty-nine VDC.

• Body Size: 1-1/2 inches
• Close-Off Pressure: 250 PSI
• Flow Coefficient: 28 cv

Product Highlights

The actuator type is non-spring return with fail-in-place positioning. It utilizes a linear motion for operation and is rated for an ambient temperature range from -10 to 50 degrees Celsius.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US
• Material Trim: Brass

Technical Specifications

• Control Signal: Floating, Proportional
• Input Voltage: 24 VAC/VDC, 20 to 29 VDC
• Force: 89 lbf
• Protection Rating: NEMA 1
• Operating Fluid Temperature: -7 to 138 degrees Celsius
• Seat Material: Bronze
• Valve Body: VB-7323-0-4-10
