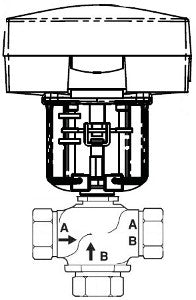

Schneider Electric VU-7323-674-4-09 Valve Actuator Assembly 1-1/4 Inch Globe Valve

Product Description

Schneider Electric VU-7323-674-4-09 is a valve actuator assembly designed for fluid control applications. This product features a one and one-fourth inch globe valve configuration. It utilizes a three-way diverting design for efficient flow management.

• Body Size: 1-1/4 inches
• Type: Electric actuator with linear movement
• Control Signal: Floating and proportional

Product Highlights

This valve actuator is suitable for a range of applications where precise fluid control is required. Its materials and design allow for durability and effective performance.

Product Information

Standard Information

• Country of Origin: US
• Manufacturer: Schneider Electric

Technical Specifications

• Configuration: 3-Way Diverting
• Connection Type: NPT
• Flow Coefficient: 20 cv
• Close-Off Pressure: 250 PSI
• Actuator Type: Electric
• Power Input Voltage: 24 VAC/VDC, 20 to 29 VDC
• Force: 89 lbf
• Material Trim: Brass
• Average Ambient Temperature: -10 to 50 °C
• Relative Humidity: 15 to 95 % non-condensing
