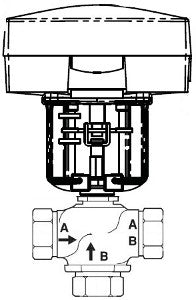

Schneider Electric VU-7323-674-4-04 Globe Valve Assembly 3-Way Diverting

Product Description

Schneider Electric VU-7323-674-4-04 is a globe valve assembly designed for efficient fluid control in piping systems. This valve features a half-inch body size and operates with a 3-way diverting configuration. The valve is constructed with NPT connections and is rated for a close-off pressure of 250 PSI.

• Operating Range: 24 VAC/VDC and 20-29 VDC
• Control Signal: Floating and proportional
• Built for non-spring return operation

Product Highlights

This globe valve is ideal for automated systems requiring precise control of fluid flow. The valve operates with an electric actuator, making it suitable for various industrial applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Body Size: 1/2 inch
• Flow Coefficient: 4.4 cv
• Actuator Type: Electric
• Mechanical Movement: Linear
• Power Input Voltage: 24 VAC/VDC, 20-29 VDC
• Force: 89 lbf
• Material Trim: Brass
• Protection Rating: NEMA 1
