Description

Product Description

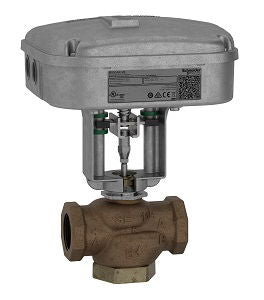

The Schneider Electric VU-7323-660-4-08 is a valve assembly designed for efficient fluid control. This globe valve operates with a three-way diverting configuration and has a body size of one inch.

  • Type: Globe
  • Connection: NPT
  • Actuator Type: Electric

Product Highlights

This valve features a flow coefficient of fourteen Cv and a close-off pressure rating of two hundred twenty PSI, making it suitable for various applications.

Product Information

Standard Information

  • Valve Body: VB-7323-0-4-08
  • Material Trim: Brass

Technical Specifications

  • Force: 202 lbf
  • Protection Rating: NEMA 4
  • Control Signal Range: 0 to 10 VDC, 2 to 10 VDC, 4 to 20mA
  • Power Input Voltage: 24 VAC/VDC
  • Mechanical Movement: Linear
  • Operating Fluid Temperature: -7 to 138 °C
  • Relative Humidity: 15-95 % non-condensing
  • Ambient Air Temperature for Operation: -10 to 50 °C
