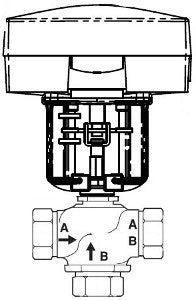

Schneider Electric VU-7313-674-4-11 Valve Actuator Assembly 2 Inch 3-Way Mixing

Product Description

Schneider Electric VU-7313-674-4-11 is a valve actuator assembly designed for optimal flow control. This unit features a two-inch body size with a three-way mixing configuration. The globe valve type is equipped with NPT connections, and it effectively manages stem flow action from A to AB. The brass trim and flow coefficient of forty-one cv ensure high performance.

• Body Size: 2 inches
• Control Signal: Floating and Proportional
• Power Input Voltage: 24 VAC/VDC, 20 to 29 VDC

Product Highlights

This actuator assembly is suitable for various applications in industrial environments. It incorporates electric actuation, providing precise control for automated systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Actuator Type: Electric
• Loss of Power Type: Non-Spring Return
• Force: 89 lbf
• Flow Coefficient: 41 cv
• Close-Off Pressure: 19 PSI
• Mechanical Movement: Linear
• Protection Rating: NEMA 1
• Operating Temperature: -7 to 138 °C
