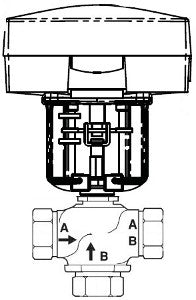

Schneider Electric VU-7313-674-4-09 globe valve assembly

Product Description

This Schneider Electric VU-7313-674-4-09 valve assembly is designed for precise applications in fluid control. It features a body size of one and one-quarter inches and operates as a three-way mixing globe valve. The valve includes an NPT connection with a brass trim, suitable for various installation environments.

• Body Size: 1-1/4 inches
• Configuration: 3-Way Mixing
• Actuator Type: Electric

Product Highlights

This valve assembly is ideal for operators seeking an efficient solution in mixing and controlling fluid dynamics. The floating proportional control signal provides flexibility in varying applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Type: Valve-Actuator Assembly

Technical Specifications

• Flow Coefficient: 20 cv
• Close-Off Pressure: 56 PSI
• Power Input Voltage: 24 VAC/VDC, 20 to 29 VDC
• Force: 89 lbf
• Ambient Air Temperature: -10 to 50 °C
• Relative Humidity: 15-95 % non-condensing
• Protection Rating: NEMA 1
• Control Signal Range: 0 to 10 VDC, 2 to 10 VDC, 4 to 20 mA with 500 ohm resistor
