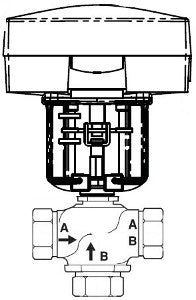

Schneider Electric VU-7313-674-4-08 Valve Actuator Assembly

Product Description

Schneider Electric VU-7313-674-4-08 is a precise valve actuator assembly designed for a variety of applications. This unit features a one-inch body size and a three-way mixing configuration, making it suitable for effective fluid control in various systems.

• Type: Globe Valve Assembly
• Flow Coefficient: 14 cv
• Control Signal: Floating and Proportional

Product Highlights

This valve actuator assembly is compatible with both 24 VAC/VDC and twenty to twenty-nine VDC power inputs, providing flexibility for various setups. It has a robust brass material trim and an electric actuator type for reliable operation. The actuator has a linear mechanical movement that enhances control precision.

Product Information

Standard Information

• Brand: Schneider Electric
• Country Origin: US

Technical Specifications

• Configuration: 3-Way Mixing
• Close-Off Pressure: 92 PSI
• Power Input Voltage: 24 VAC/VDC, 20 to 29 VDC
• Force: 89 lbf
• Operating Fluid Temperature: -7 to 138 °C
• Mechanical Movement: Linear
• Protection Rating: NEMA 1
• Relative Humidity: 15-95 % non-condensing
