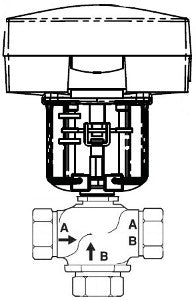

Schneider Electric VU-7313-674-4-06 Valve Actuator Assembly 3-Way Mixing NPT

Product Description

Schneider Electric VU-7313-674-4-06 is a valve actuator assembly designed for efficient control in a variety of applications. This assembly features a three-way mixing configuration suitable for effective fluid handling. It has a three-quarter inch body size and utilizes a globe valve design with NPT connections.

• Body Size: 3/4 inch
• Configuration: Three-Way Mixing
• Actuator Type: Electric

Product Highlights

Stacked with features including brass trim, a seven-point-five flow coefficient, and a close-off pressure rating of one hundred ninety-eight PSI, this assembly operates with a linear movement mechanism. The actuator provides floating and proportional control signals, making it ideal for precise applications.

Product Information

Standard Information

• Country of Origin: US
• Manufacturer: Schneider Electric

Technical Specifications

• Power Input Voltage: 24 VAC/VDC, 20 to 29 VDC
• Force: 89 lbf
• Protection Rating: NEMA 1
• Assembly Components: Valve Body: VB-7313-0-4-06
• Control Signal Range: 0 to 10 VDC, 2 to 10 VDC, 4 to 20mA with 500 ohm resistor
• Operating Fluid Temperature: -7 to 138 °C
• Ambient Air Temperature for Operation: -10 to 50 °C
• Ambient Air Temperature for Storage: -25 to 65 °C
