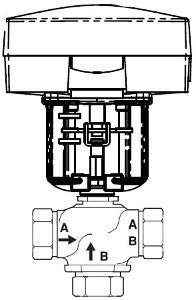

Schneider Electric VU-7313-674-4-04 Valve Actuator Assembly 1/2 Inch 3-Way Mixing

Product Description

Schneider Electric VU-7313-674-4-04 is a valve actuator assembly designed for efficient control of fluid flow. This unit features a 1/2 inch body size and a three-way mixing configuration. The globe valve is equipped with NPT connections and is ideal for various applications in HVAC and plumbing systems.

• Flow coefficient of 4.4 cv
• Electric actuator with fail-in-place position
• Close-off pressure of 250 PSI

Product Highlights

This assembly is suitable for both residential and commercial use, providing reliable performance and automatic resets in control systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Size: 1/2 inch
• Configuration: 3-Way Mixing
• Type: Globe
• Flow Coefficient: 4.4 cv
• Close-Off Pressure: 250 PSI
• Actuator Type: Electric
• Control Signal: Floating, Proportional
• Power Input Voltage: 24 VAC/VDC, 20 to 29 VDC
• Max Force: 89 lbf
• Protection Rating: NEMA 1
• Operating Temperature: -7 to 138 °C
• Relative Humidity: 15-95 % non-condensing
