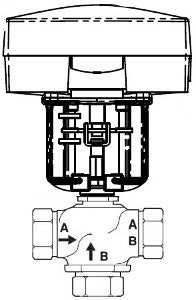

Schneider Electric VU-7313-674-4-02 Globe Valve Assembly 3-Way Mixing NPT Replacement MPN

Product Description

The Schneider Electric VU-7313-674-4-02 is a globe valve assembly designed for three-way mixing applications. This valve features a half-inch body size, NPT connection, and is constructed from durable brass materials. It operates with an electric actuator, providing precise control over fluid flow.

• Body Size: 1/2 inch
• Configuration: 3-Way Mixing
• Actuator Type: Electric

Product Highlights

This valve assembly is suitable for various industrial and commercial applications. It is designed to operate in environments where reliable performance is needed, ensuring secure and efficient mixing of fluids.

Product Information

Standard Information

• Country of Origin: US
• Brand: Schneider Electric

Technical Specifications

• Flow Coefficient: 2.2 cv
• Close-Off Pressure: 250 PSI
• Control Signal: Floating, Proportional
• Power Input Voltage: 24 VAC/VDC, 20 to 29 VDC
• Force: 89 lbf
• Material Trim: Brass
• Protection Rating: NEMA 1
• Operating Fluid Temperature: -7 to 138 °C
• Ambient Air Temperature for Operation: -10 to 50 °C
• Ambient Air Temperature for Storage: -25 to 65 °C
