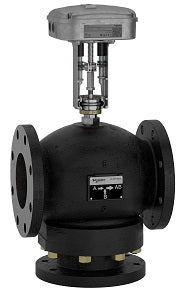

Schneider Electric VU-7313-660-4-02 Spacelogic Globe Valve Assembly 1/2 In 3-Way Mixing Actuator

Product Description

The Schneider Electric VU-7313-660-4-02 is a Spacelogic globe valve assembly designed for various applications. It has a body size of one-half inch and features a three-way mixing configuration. This valve includes a stem flow action that operates from stem down flow A to AB, with a flow coefficient of 2.2 Cv. The actuator type is electric, enabling efficient performance and control.

• Body Material: Brass
• Power Input Voltage: 24 VAC/VDC
• Protection Rating: NEMA 4

Product Highlights

This product is suitable for automating fluid control in HVAC and plumbing systems while ensuring reliability and precision in operation.

Product Information

Standard Information

• Valve Type: Globe
• Actuator Type: Spring Return

Technical Specifications

• Flow Coefficient: 2.2 Cv
• Close-Off Pressure: 250 PSI
• Control Signal Range: 0 to 10 VDC
• Ambient Air Temperature for Operation: -10 to 50 °C
• Relative Humidity: 15-95% non-condensing
• Force: 202 lbf
• Valve Rotation: Automatic Reset
• Mechanical Movement: Linear
