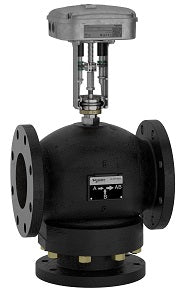

Schneider Electric VU-7263-660-4-11 Valve Assembly 2 in 2-way

Product Description

The Schneider Electric VU-7263-660-4-11 is a globe valve assembly suitable for use in various applications. This assembly features a two-inch body size and operates as a two-way valve. It is designed for efficiency in control systems and is compatible with electric actuators for automated operations.

• Body size: 2 inches
• Flow coefficient: 40 Cv
• Control signal: Floating, proportional

Product Highlights

This valve is ideal for systems requiring precise flow control and can operate within a wide temperature range, making it suitable for both heating and cooling applications.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VU-7263-660-4-11

Technical Specifications

• Type: Globe Valve
• Connection: NPT
• Material Trim: Stainless Steel
• Power Input Voltage: 24 VAC/VDC
• Close-off Pressure: 50 PSI
• Mechanical Movement: Linear
• Protection Rating: NEMA 4
• Operating Temperature: -7 to 171 °C
• Spring Return Type: Loss of Power
• Force: 202 lbf (900 N)
• Width: 2 inches
