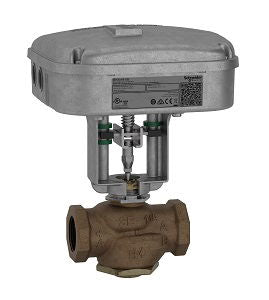

Schneider Electric VU-7263-650-4-11 Spacelogic Globe Valve Assembly 2 in 2-way M900AR-VB

Product Description

The Schneider Electric VU-7263-650-4-11 is a globe valve assembly designed for effective control of fluid flow. This unit features a two-way configuration and a body size of two inches. It incorporates a spring return actuator, M900AR-VB, making it suitable for various applications in HVAC and plumbing systems.

• Effective for controlling flow in HVAC systems
• Handles a variety of fluids
• Easy installation with NPT connections

Product Highlights

This valve assembly provides reliable operation with an electric actuator for precise control. It's built for durability and efficiency in demanding environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Size: 2 inches
• Configuration: 2-Way
• Flow Coefficient: 40 Cv
• Close-Off Pressure: 50 PSI
• Actuator Type: Electric
• Power Input Voltage: 24 VAC/VDC, 20 to 29 VDC
• Control Signal Range: 0 to 10 VDC, 2 to 10 VDC, 4 to 20mA
• Loss of Power Type: Spring Return
• Protection Rating: NEMA 2
• Body Material: Bronze
