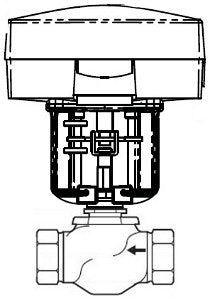

Schneider Electric VU-7213-686-4-11 Globe Valve Assembly 2 in 2-way

Product Description

Schneider Electric VU-7213-686-4-11 is a globe valve assembly designed for efficient flow control in various applications. This valve features a two-inch size and a two-way configuration, making it suitable for a wide range of systems. It operates with a stem-up open action and is powered by twenty-four volts alternating or direct current.

• Body Size: 2 inches
• Flow Coefficient: 40 cv
• Power Input Voltage: 24 VAC/VDC, 20 to 29 VDC

Product Highlights

Featuring a fail-in-place position and non-spring return, this assembly ensures reliable performance during power loss. Its compact design allows for easy installation in pipelines with NPT connections.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Configuration: 2-Way
• Close-Off Pressure: 98 PSI
• Actuator Type: Electric
• Stem Flow Action: Stem up A open
• Material Trim: Brass
• Protection Rating: NEMA 1
• Mechanical Movement: Linear
• Relative Humidity: 15 to 95% non-condensing
