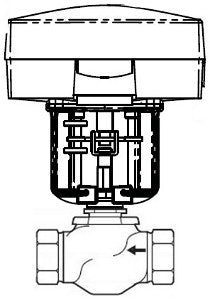

Schneider Electric VU-7213-680-4-09 Venta Globe Valve Assembly 1-1/4 in 2-way Replacement MPN VU-7213-680-4-09

Product Description

Schneider Electric VU-7213-680-4-09 is a Venta globe valve assembly. This valve has a body size of one and one-fourth inches and is designed for two-way flow control. It features a non-spring return system for loss of power and operates effectively at a maximum close-off pressure of one hundred thirty PSI. Ideal for various HVAC and plumbing applications, this electric actuator valve ensures reliable performance with a flow coefficient of twenty cv.

• Body Size: 1-1/4 inches
• Configuration: 2-Way
• Actuator Type: Electric

Product Highlights

This globe valve assembly is built for efficiency and reliability in demanding environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Stem Flow Action: Stem up A open
• Flow Coefficient: 20 cv
• Close-Off Pressure: 130 PSI
• Power Input Voltage: 24 VAC/VDC, 20 to 29 VDC
• Connection Type: NPT
• Material Trim: Brass
• Protection Rating: NEMA 1
• Operating Fluid Temperature: -7 to 138 °C
• Ambient Air Temperature for Operation: -10 to 50 °C
• Ambient Air Temperature for Storage: -25 to 65 °C
