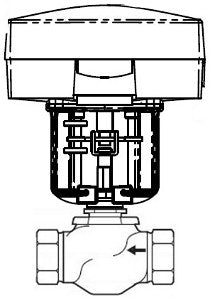

Schneider Electric VU-7213-680-4-07 Venta Globe Valve Assembly 1 in 2-way 10 cv

Product Description

The Schneider Electric VU-7213-680-4-07 is a Venta globe valve assembly designed for precision control in fluid applications. This valve features a one-inch size and 2-way configuration, making it suitable for various plumbing and HVAC systems.

• Body Material: Brass
• Close-Off Pressure: 207 PSI
• Power Input Voltage: 24 VAC/VDC

Product Highlights

This globe valve assembly is built for high durability and reliability. It is equipped with an electric actuator type and incorporates features such as a control signal range from zero to ten VDC.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Size: 1 inch
• Flow Coefficient: 10 cv
• Actuator Type: Electric
• Stem Flow Action: Stem up A open
• Protection Rating: NEMA 1
• Operating Fluid Temperature: -7 to 138 °C
• Ambient Air Temperature for Operation: -10 to 50 °C
• Ambient Air Temperature for Storage: -25 to 65 °C
• Material Trim: Brass
