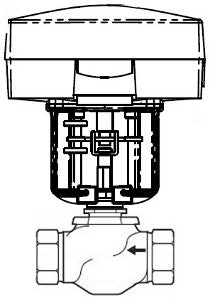

Schneider Electric VU-7213-680-4-06 Venta Globe Valve Assembly 3/4 in 2-way

Product Description

The Schneider Electric VU-7213-680-4-06 is a Venta Globe Valve Assembly designed for precise fluid control. This assembly features a three-quarter inch body size and operates with a two-way configuration. It uses electric actuation and has a robust flow coefficient of 7.5 cv.

• Body Size: 3/4 in
• Actuator Type: Electric
• Control Signal: Floating, Proportional

Product Highlights

This globe valve assembly is ideal for HVAC applications, providing reliable performance in regulating fluid flow.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VU-7213-680-4-06

Technical Specifications

• Configuration: 2-Way
• Body Pattern: Straightway
• Close-Off Pressure: 250 PSI
• Power Input Voltage: 24 VAC/VDC, 20 to 29 VDC
• Flow Coefficient: 7.5 cv
• Material Trim: Brass
• Mechanical Movement: Linear
• Working Temperature: -7 to 138 °C
• Force: 179 lbf
• IP Protection Rating: NEMA 1
• Ambient Air Temperature For Operation: -10 to 50 °C
• Relative Humidity: 15-95% non-condensing
• Control Type: Automatic reset
