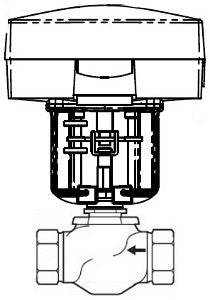

Schneider Electric VU-7213-680-4-05 Venta Globe Valve Assembly 3/4 in 2-way Replacement MPN

Product Description

Schneider Electric VU-7213-680-4-05 is a Venta globe valve assembly designed for efficient flow control. This valve features a body size of three quarters of an inch and operates as a two-way valve. The valve's configuration allows for streamlined flow in various applications, making it essential for HVAC, plumbing, and industrial uses.

• Body Material: Brass
• Flow Coefficient: 5.5 cv
• Close-Off Pressure: 250 PSI

Product Highlights

This valve assembly incorporates an electric actuator, providing precise control over flow regulation. The actuator operates on a supply voltage range of twenty to twenty-nine volts DC or twenty-four VAC/DC. The device is designed for long-term operation and includes features like fail-in-place positioning in case of power loss.

Product Information

Standard Information

• Control Type: Automatic reset
• Material Trim: Brass

Technical Specifications

• Actuator Type: Electric
• Ambient Air Temperature for Operation: -10 to 50 °C
• Relative Humidity: 15-95% non-condensing
• Flow Pattern: 2-way
• Mechanical Movement: Linear
• Protection Rating: NEMA 1
• Valve Connection: NPT
• Force: 179 lbf
