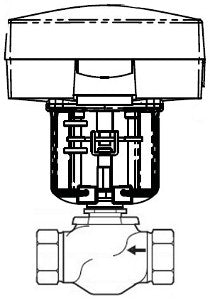

Schneider Electric VU-7213-674-4-09 Venta Globe Valve Assembly 1-1/4 in 2-way

Product Description

Schneider Electric VU-7213-674-4-09 is a Venta globe valve assembly designed for various applications. This unit features a body size of one and one-quarter inches and operates as a two-way valve. It is suitable for fluid control in HVAC systems and is capable of withstanding up to fifty-six PSI. With its electric actuator and a power input of twenty-four VAC or VDC, this valve provides effective control for a range of applications.

• Body Size: 1-1/4 in
• Flow Coefficient: 20 cv
• Control Signal: Floating, Proportional

Product Highlights

This valve assembly includes components such as a linear actuator and features a tool-less valve linkage. It is designed with a straightway body pattern and is constructed with bronze materials for durability. The actuator allows for automatic reset control and is equipped with terminal block connections for easy installation.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Close-Off Pressure: 56 PSI
• Ambient Air Temperature for Operation: -10-50 °C
• Output Current: 30 mA
• Flow Pattern: 2 SPDT (optional)
• Protection Rating: NEMA 1
• Stroke Length: N/A
• Relative Humidity: 15-95 % non-condensing
• Material Trim: Brass
