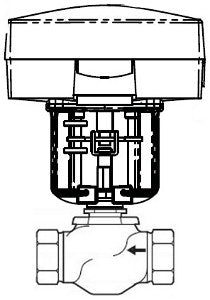

Schneider Electric VU-7213-674-4-06 Venta Globe Valve Assembly 3/4 in 2-way

Product Description

Schneider Electric VU-7213-674-4-06 is a globe valve assembly designed for various applications. This valve measures three-fourths of an inch and features a two-way configuration. It is suitable for use in systems requiring reliable fluid control.

• Electric actuator type
• Close-off pressure rating of 198 PSI
• Flow coefficient of 7.5 cv

Product Highlights

This valve assembly provides a robust solution for fluid management and is ideal for HVAC systems and industrial processes.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Size: 3/4 in
• Connection Type: NPT
• Stem Flow Action: Stem up open
• Material Trim: Brass
• Control Signal: Floating, Proportional
• Power Input Voltage: 24 VAC/VDC, 20 to 29 VDC
• Mechanical Movement: Linear
• Protection Rating: NEMA 1
• Operating Fluid Temperature: -7 to 138 °C
• Seating Seal Material: PTFE
• Force: 89 lbf
• Ambient Air Temperature for Operation: -10 to 50 °C
• Relative Humidity: 15-95% non-condensing
