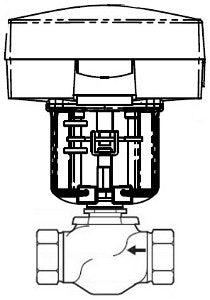

Schneider Electric VU-7213-674-4-02 Venta Globe Valve Assembly 1/2 In 2-Way

Product Description

Schneider Electric VU-7213-674-4-02 is a Venta Globe Valve Assembly designed for reliable fluid control. It features a half-inch body size and operates as a two-way valve. This unit employs a stem up open flow action with a flow coefficient of 1.3, making it suitable for various applications. The assembly is rated for a close-off pressure of 250 PSI and utilizes an electric actuator for precise control.

• Body Size: 1/2 inches
• Configuration: 2-Way
• Actuator Voltage: 24 VAC/VDC

Product Highlights

This valve assembly is engineered for automatic reset operation, ensuring reliability during use. Its linear mechanical movement allows for smooth operation, while the NEMA 1 rating provides necessary protection in standard environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Body Pattern: Straightway
• Connection: NPT
• Material Trim: Brass
• Loss of Power Position: Fail in place
• Leads and Connections: Terminal Block
• Force: 89 lbf
• Operating Fluid Temperature: -7 to 138 °C
• Seating Seal Material: PTFE
• Ambient Air Temperature For Operation: -10 to 50 °C
• Relative Humidity: 15-95 % non-condensing
