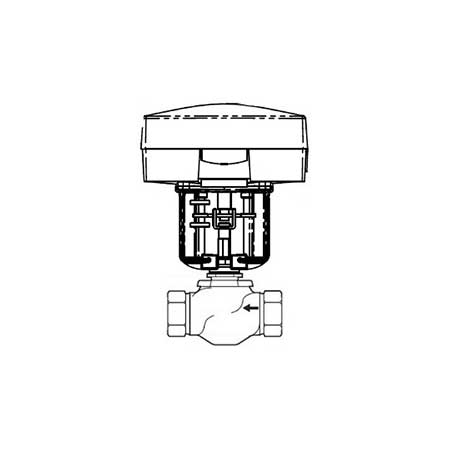

Schneider Electric VU-7213-661-4-09 Spacelogic Globe Valve Assembly 1-1/4 in 2-way Actuator M900ARW-S2

Product Description

The Schneider Electric VU-7213-661-4-09 is a Spacelogic globe valve assembly designed for efficient fluid control. This valve features a one and one-quarter inch size and operates as a two-way globe valve. It includes a M900ARW-S2 proportional spring return actuator for automatic control.

• Body size of one and one-quarter inches
• Electric actuator type with a control signal range
• Close-off pressure of one hundred thirty-five PSI

Product Highlights

This globe valve assembly is suitable for various applications in HVAC and plumbing systems. It ensures precise fluid flow control, enhanced safety, and reliable performance in demanding environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Actuator Type: Electric

Technical Specifications

• Flow Coefficient: 20 Cv
• Control Signal: Floating, Proportional
• Power Input Voltage: 24 VAC/VDC
• Material Trim: Brass
• Operating Fluid Temperature: -7 to 138 °C
• Protection Rating: NEMA 4
• Seat Leakage: Class IV
• Valve Rotation: None, tool-less connection
