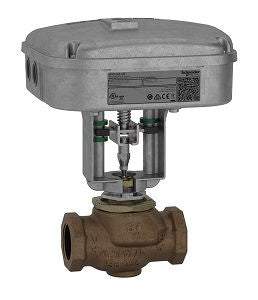

Schneider Electric VU-7213-660-4-06 Valve Actuator Assembly 3/4 in 2-way

Product Description

The Schneider Electric VU-7213-660-4-06 is a valve actuator assembly designed for precise control in HVAC systems. The unit features a globe valve with a body size of three-fourths of an inch and operates as a two-way valve with stem up open action. It incorporates a spring return actuator type for reliable performance.

• Body Size: 3/4 inches
• Flow Coefficient: 7.5 Cv
• Power Input Voltage: 24 VAC/VDC

Product Highlights

This valve actuator assembly is ideal for automatic temperature control and fluid management in commercial and residential applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Model: VU-7213-660-4-06

Technical Specifications

• Configuration: 2-Way
• Material Trim: Brass
• Control Signal Range: 0 to 10 VDC
• Close-Off Pressure: 250 PSI
• Protection Rating: NEMA 4
• Operating Fluid Temperature: -7 to 138 °C
• Loss of Power Position: Normally Open
• Relative Humidity: 15-95% non-condensing
