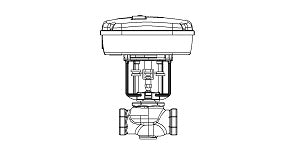

Schneider Electric VU-7213-650-4-10 Valve Actuator Assembly 1-1/2 In 2-Way VU-7213-650-4-10

Product Description

Schneider Electric VU-7213-650-4-10 is a globe valve assembly designed for fluid control in HVAC systems. This assembly features a one-and-a-half-inch body size and is configured as a two-way valve, suitable for various applications. It includes a spring return actuator, providing reliable operation and control.

• Body Material: Bronze
• Power Input Voltage: 24 VAC/VDC
• Flow Coefficient: 28 Cv

Product Highlights

This valve actuator assembly allows precise control over fluid flow, ideal for plumbing and HVAC settings. Its robust design ensures durability and effective performance.

Product Information

Standard Information

• Assembly Type: Valve-Actuator
• Country of Origin: US

Technical Specifications

• Close-Off Pressure: 90 PSI
• Actuator Type: Electric
• Operating Fluid Temperature: -7-138 degrees Celsius
• Control Signal Range: 0 to 10 VDC
• Protection Rating: NEMA 2
• Mechanical Movement: Linear
• Relative Humidity: 15-95% non-condensing
• Seating Seal Material: EPDM
• Motor Type: Brushless DC motor
