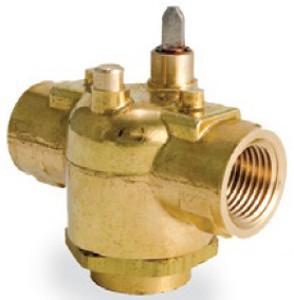

Schneider Electric VT3332 Erie Zone Valve 3-Way 3/4 Inch PN16

Product Description

The Schneider Electric VT3332 is a three-way zone valve designed for efficient flow control in various applications. This valve is made from brass and features an internal Rp thread for easy installation. The valve can handle flow rates of up to two point six cubic meters per hour, making it suitable for heating systems using glycol and water.

• Body Size: 20 mm (3/4 inch)
• Configuration: 3-Way
• Control Media: Glycol 25 to 50%, Water

Product Highlights

The VT3332 is part of the Erie PopTop line and offers reliable performance in temperature ranges from zero to ninety-three degrees Celsius. With a seating leakage class of IV, this valve ensures minimal loss of media.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Line: Erie PopTop

Technical Specifications

• Flow Coefficient: 2.5 cv
• Body Material: Brass
• Operating Fluid Temperature: 0-93 °C
• Seat Leakage: Class IV (0.01 %)
• Product Series: VT3
