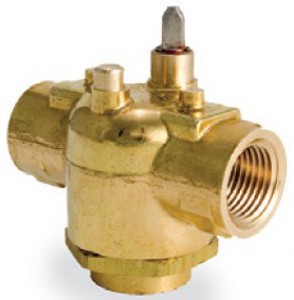

Schneider Electric VT3232 Valve 3-Way PN16 DN15 Rp Thread Replacement MPN

Product Description

The Schneider Electric VT3232 is a three-way zone valve designed for effective flow control. Made from durable brass, this valve features a half-inch connection and is suitable for various fluid media. Its Kvs rating is 2.6 m³/h, which translates to a flow coefficient of 3.0. The valve is compatible with glycol and water mixtures, making it ideal for heating and cooling applications.

• Body Size: fifteen mm
• Flow Coefficient: 2.5 cv
• Applications: Compatible with water and glycol

Product Highlights

The VT3232 valve is part of the Schneider Electric Erie PopTop series, known for reliability in HVAC applications. Its robust structure and straightforward installation make it an excellent choice for professionals.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Product Line: Erie PopTop

Technical Specifications

• Valve Type: Zone Valve
• Configuration: 3-Way
• Material: Brass
• Operating Fluid Temperature: 0-93 degrees Celsius
• Seat Leakage: Class IV (0.01 %)
• Control Media: Glycol 25 to 50%, Water
• Connection: Rp Internal
