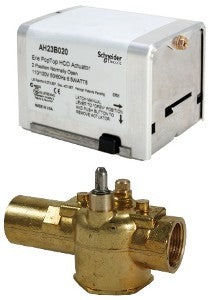

Schneider Electric VT2437H13U020 Valve Assembly 1 in Zone with 8 cv

Product Description

The Schneider Electric VT2437H13U020 valve assembly is designed for zone control in heating and cooling systems. This valve features a one inch size, a two-way configuration, and operates with a brass body material. It is suitable for use with a control media of glycol and water mixtures, with a flow coefficient of 8 cv.

• Body size is one inch
• Electric actuator with two-position control
• Close-off pressure rated at twenty PSI

Product Highlights

This valve assembly is part of the Erie PopTop product line, specifically engineered for HVAC applications. It ensures reliable operation in various temperature ranges, making it suitable for different environmental conditions.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Material: Brass
• Control Type: Automatic reset
• Power Input Voltage: 110-240 VAC
• Operating Fluid Temperature: 0-93 °C
• Ambient Air Temperature for Operation: 0-93.3 °C
• Close-Off Pressure: 20 PSI
• Actuator Type: Electric Rotary
• Protection Rating: NEMA 1
