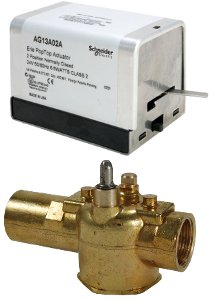

Schneider Electric VT2343G13A0200F Valve Actuator Assembly 3/4 in Zone Valve

Product Description

The Schneider Electric VT2343G13A0200F is a valve actuator assembly designed for zone control applications. It features a three-quarter inch body size and a two-way configuration, making it suitable for various plumbing and heating systems.

• Electric actuator type with a power input of twenty-four VAC
• Spring return mechanism for normally closed operation
• Brass body material with a flow coefficient of 3.5 cv

Product Highlights

This valve assembly is ideal for regulating fluid flow in heating and cooling systems, especially with glycol and water mixtures. It is important to note that this valve should not be used with steam applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Origin: US

Technical Specifications

• Body Size: three-fourths inch
• Control Signal: two-position (On/Off)
• Close-Off Pressure: 25 PSI
• Protection Rating: NEMA 1
• Leads and Connections: eighteen inches
• Operating Fluid Temperature: zero to ninety-three degrees Celsius
• Relative Humidity: five to ninety-five percent non-condensing
• Power Consumption: seven point five VA AC
