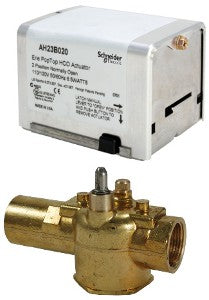

Schneider Electric VT2337H13U020 Valve Actuator Assembly 3/4 in 2W Zone

Product Description

The Schneider Electric VT2337H13U020 is a valve actuator assembly designed for effective zone control. This assembly supports a body size of twenty millimeters with a two-way configuration. It connects with Rp internal threads, making it suitable for various applications in fluid control.

• Body material is brass
• Control signal is 2-position (On/Off)
• Actuator type is electric, with spring return features

Product Highlights

This valve actuator operates on multiple voltages including 110 to 240 VAC. It ensures a close-off pressure of twenty PSI, operating with a fluid temperature range of zero to ninety-three degrees Celsius.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Size: 20 mm
• Flow Coefficient: 7.5 cv
• Control Media: Glycol 25 to 50% and Water
• Operating Fluid Temperature: 0 to 93 degrees Celsius
• Close-Off Pressure: 20 PSI
• Power Input Voltage: 110 VAC to 240 VAC
• Mechanical Movement: Rotary
• Protection Rating: NEMA 1
